Lifting Delivery Robot
Introduction

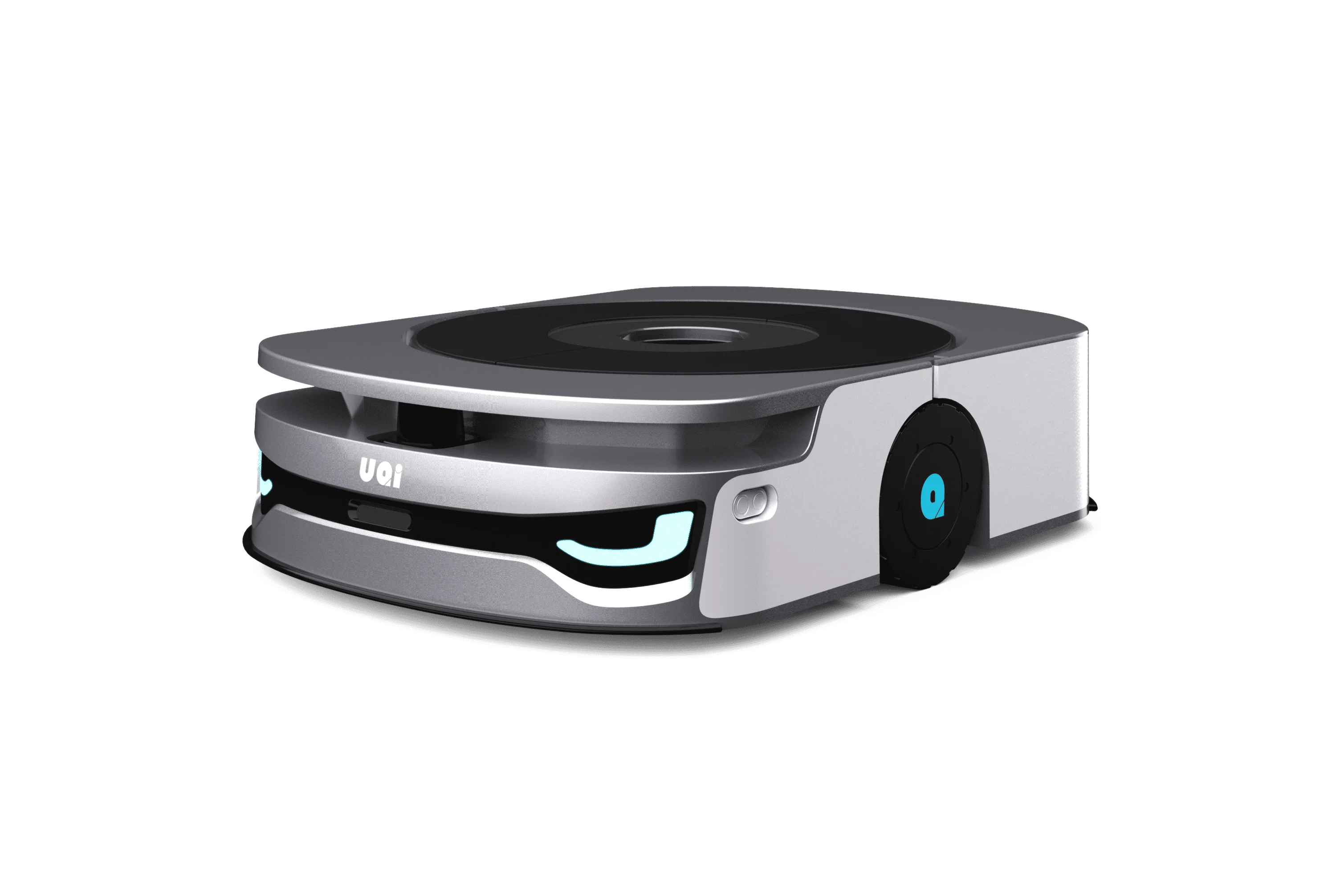

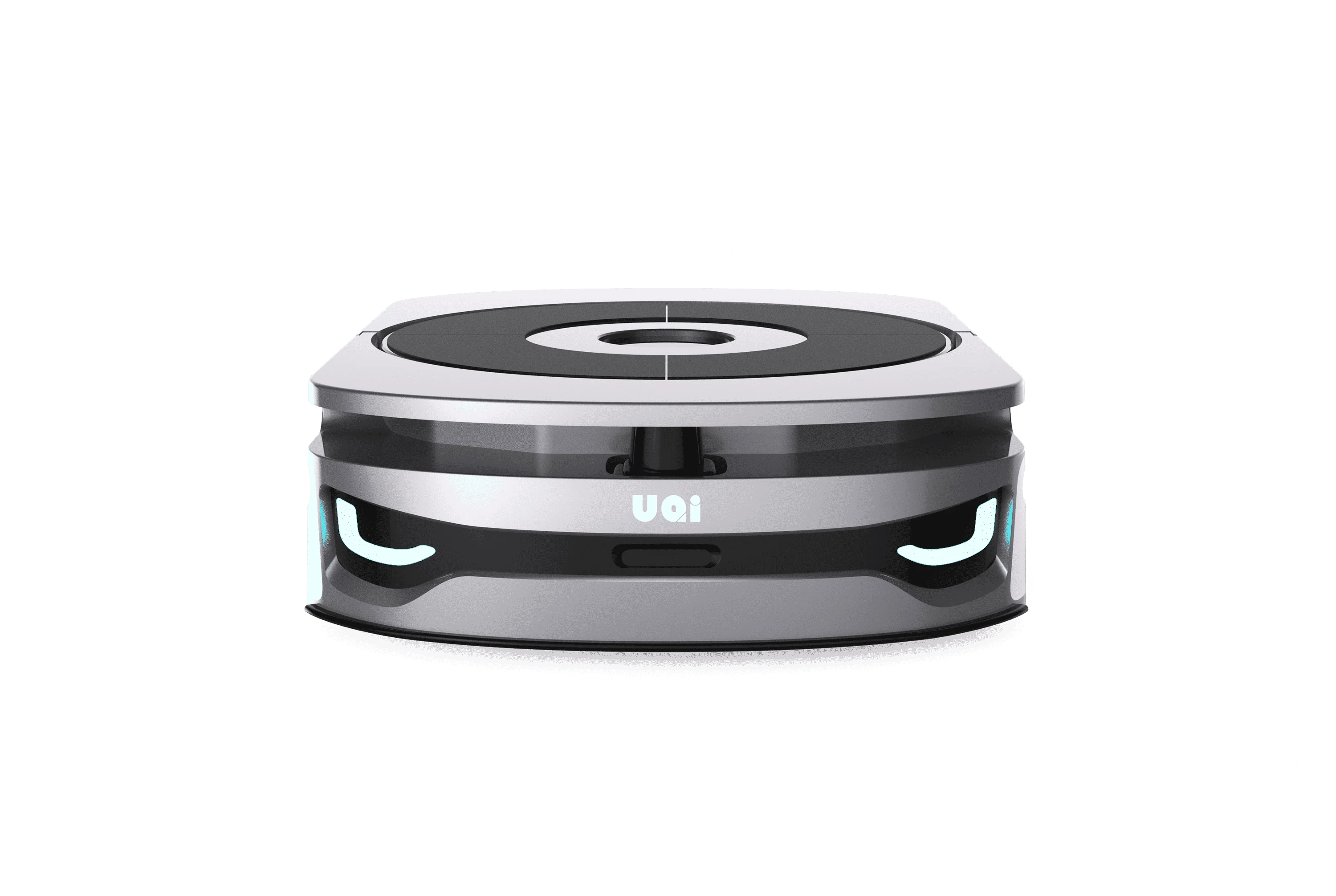

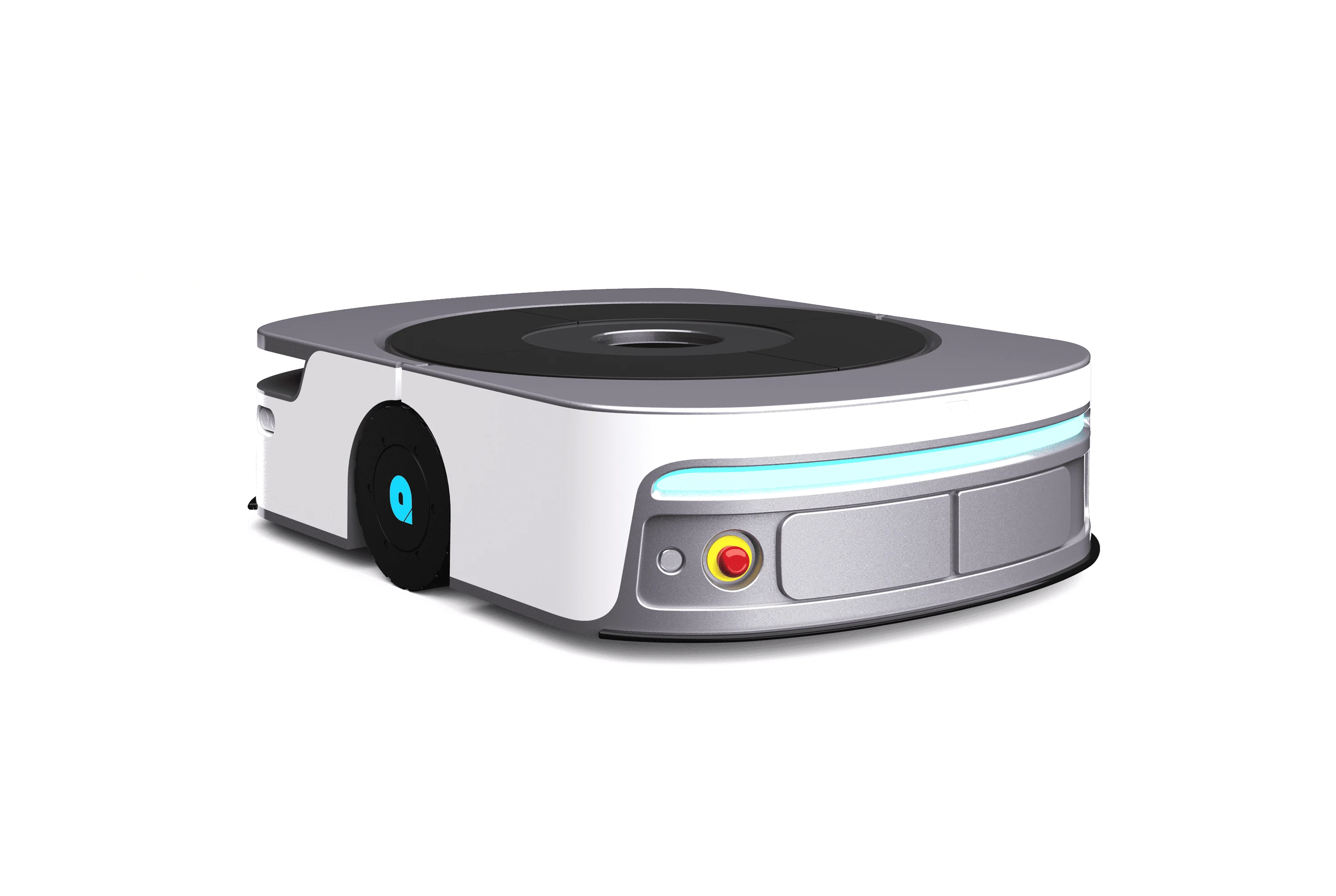

Lifting Delivery Robot
U1000
Suitable for industrial and warehouse environments
With a central spinning capability, the robot navigates agilely through narrow spaces and adapts to diverse operational scenarios

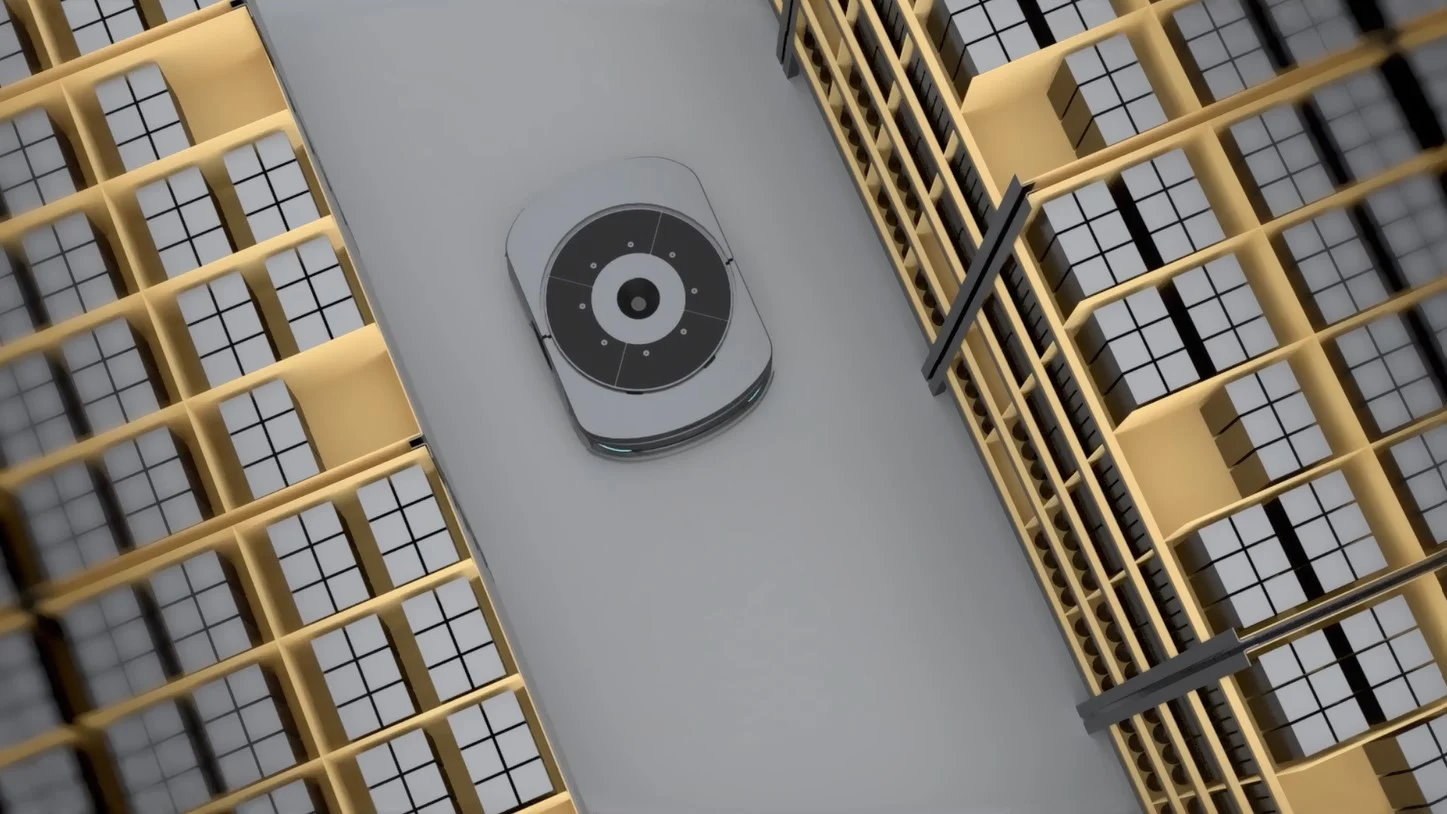

Narrow-Aisle Capability
Able to pass through aisles as narrow as 71 cm.

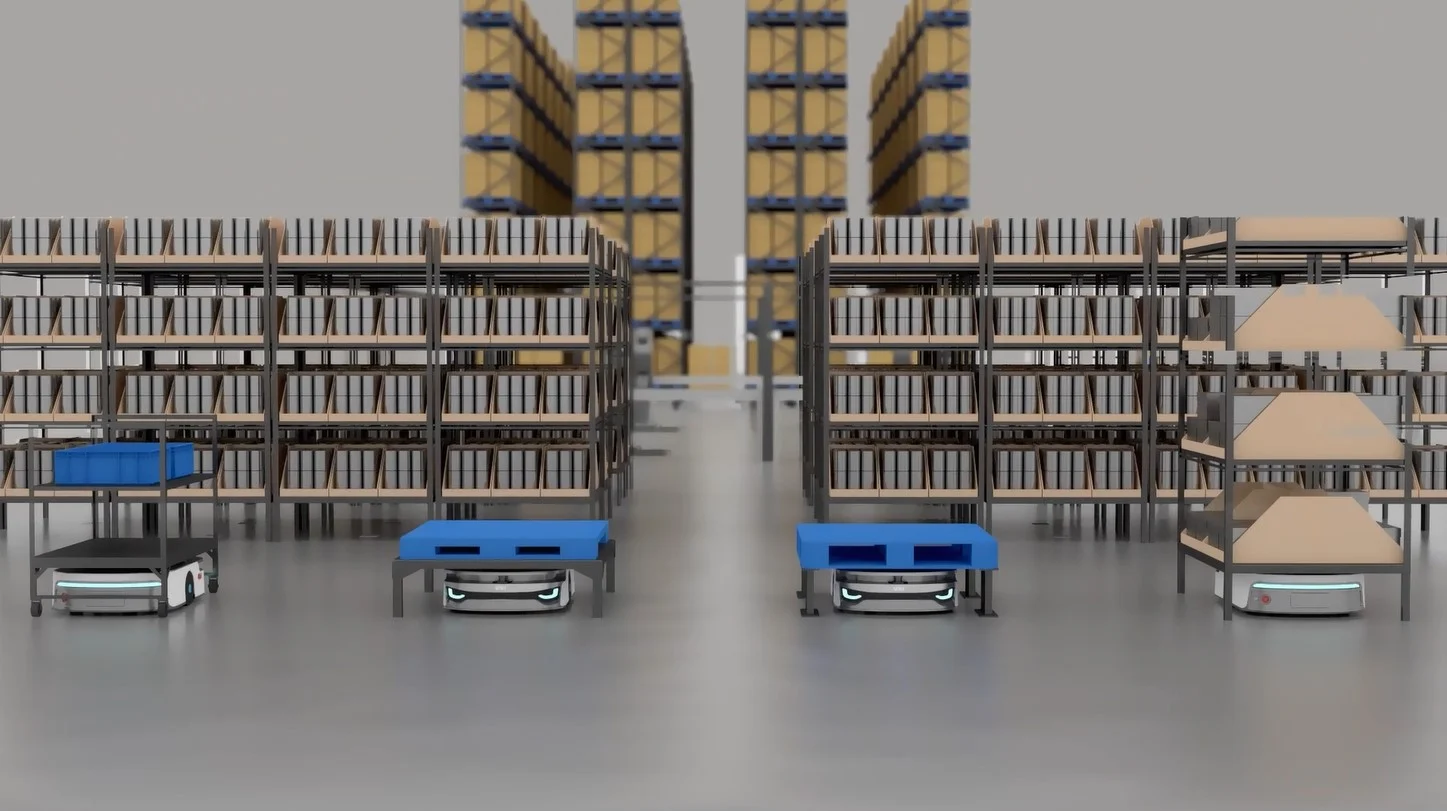

Compact Yet Powerful
10% smaller than comparable models while supporting loads up to 1000 kg, with a lifting height of 55 mm.

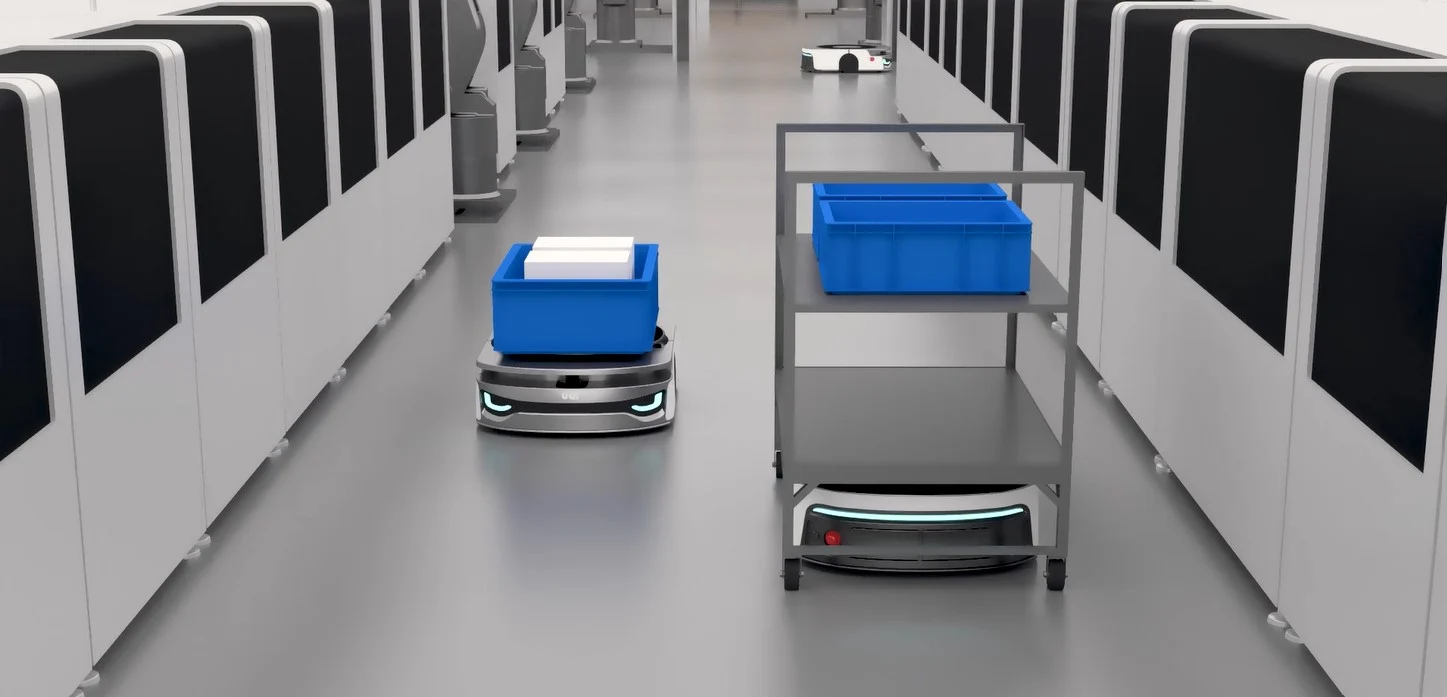

Multi-Robot Scheduling
Navigation and fleet scheduling can be managed effortlessly through a cloud platform.

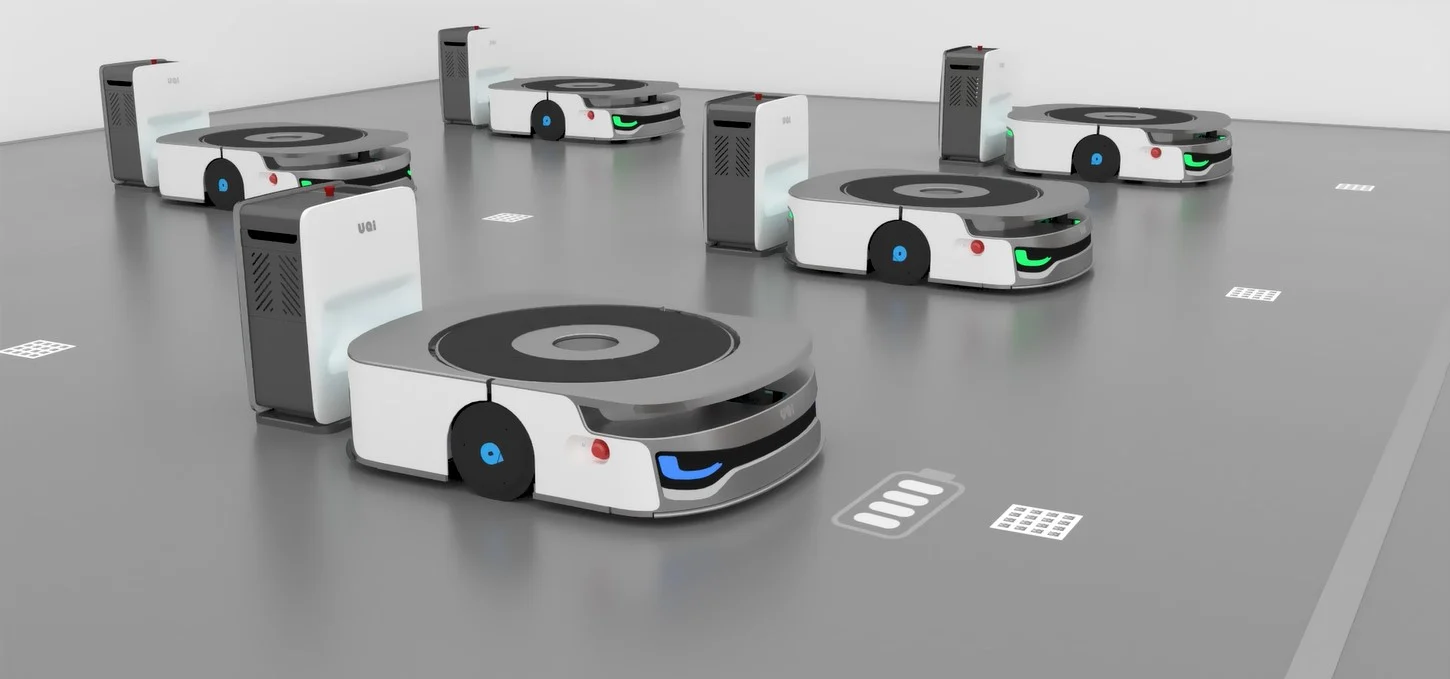

Long Battery Life
Provides over 8 hours of operation and automatically returns to the charging station when battery is low—no manual intervention required.
Product Specifications
| Model | U1000 |
|---|---|
| Dimensions (L × W × H) | 980 x 680 x 245 mm |
| Payload Capacity | 1200 kg |
| Positioning System | VSLAM |
| Positioning Accuracy | ±10 mm |
| Obstacle Avoidance Method | Obstacle-avoidance LiDAR + Stereo Cameras |
| Maximum Cruise Speed (Unloaded) | 1.5 m/s |
| Maximum Lifting Height | 55 mm |
| Minimum Passage Width | 710 mm |
| Maximum Climbing Angle | 3° |
| Operating Time | ≥ 8h |
| Charging Time | 1.5 h |
| Communication Method | WiFi / Bluetooth / 4G |
| Driving Modes | Forward / Reverse / Turning / In-place Rotation |
