Autonomous Counterbalanced Forklift
Introduction
Autonomous Counterbalanced Forklift
F3000
High Load Capacity × Automated Stacking
Designed for heavy pallet handling and warehouse storage operations, enhancing workplace safety and improving material-handling efficiency

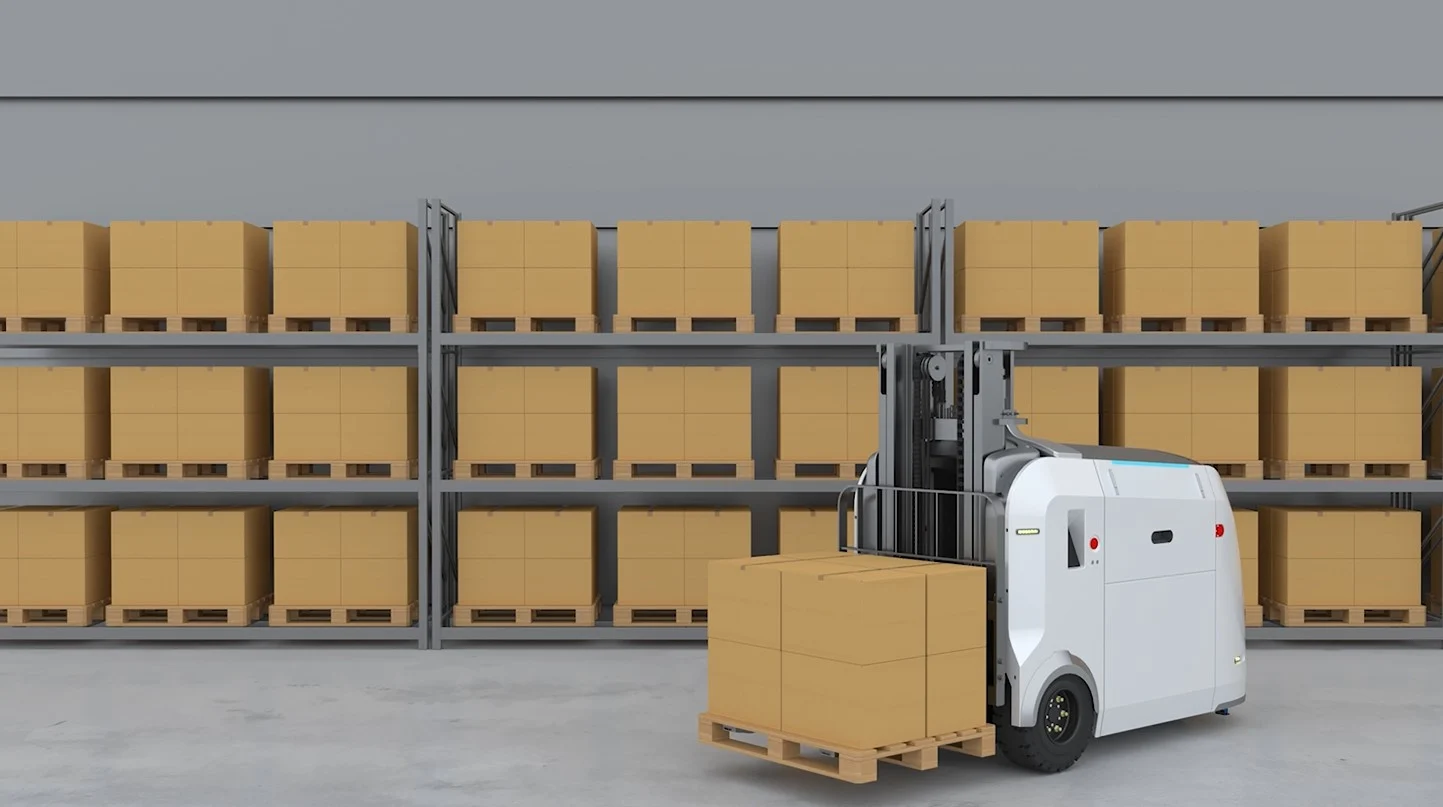

Heavy-Duty Loading
Supports a 3500 kg load with a stacking height of 2500 mm, pushing the boundaries of heavy-duty forklift performance.
Flexible Speed Control for Indoor and Outdoor Use
Outdoor model: 1–7.2 km/h
Indoor model: 1–5 km/h
Ensures a balance of stability and efficiency across different environments.

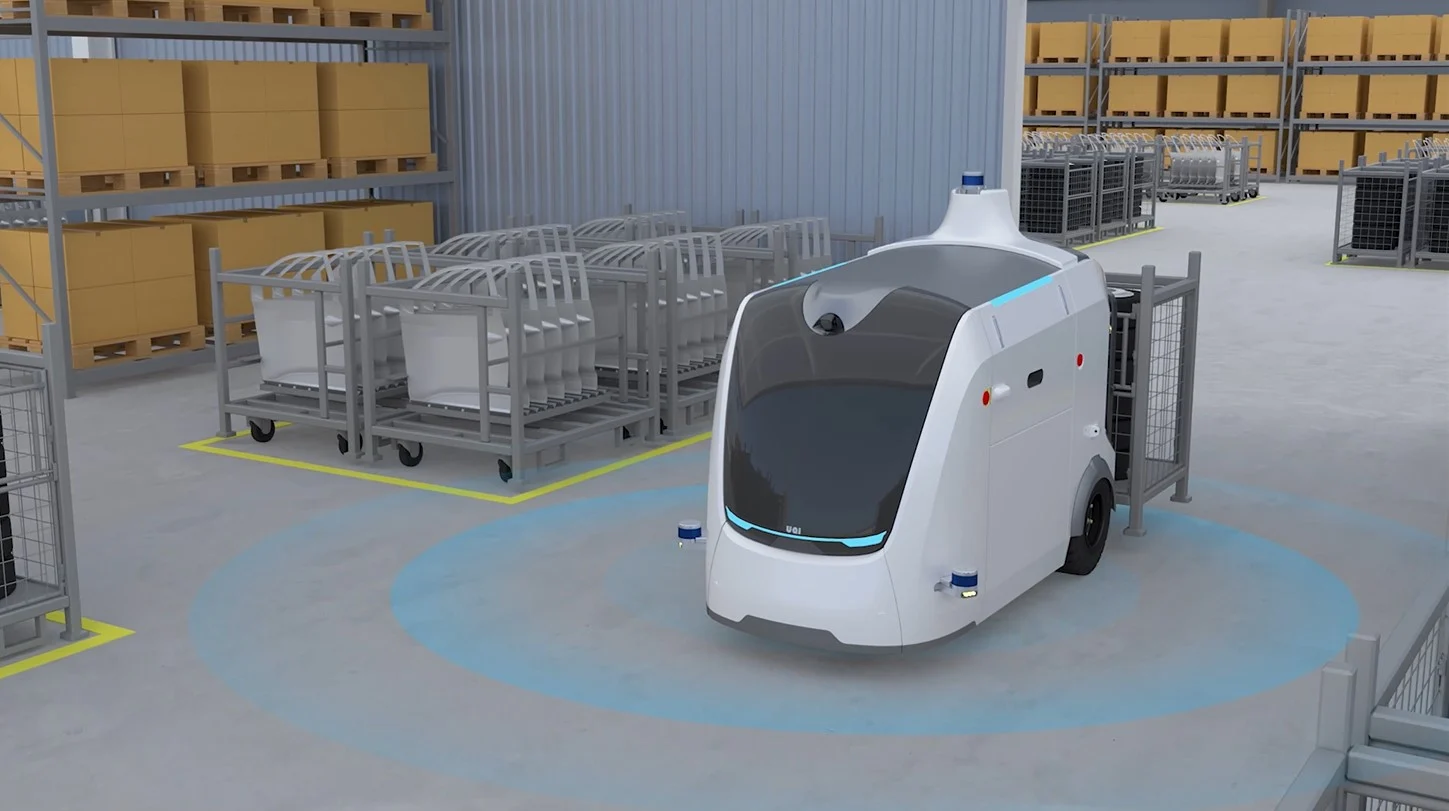

Comprehensive 3D Perception
Intelligent obstacle avoidance for safer and more reliable operation.
Product Specifications
| Model | F3000 Indoor | F3000 Outdoor |
|---|---|---|
| Dimensions (L × W × H) | 3382 x 1300 x 2180 mm | 3382 x 1300 x 2180 mm |
| Payload Capacity | 3000 kg / 3500 kg | 3000 kg / 3500 kg |
| Positioning System | Multi-line LiDAR SLAM | Multi-line LiDAR SLAM / GNSS Fusion Positioning |
| Positioning Accuracy | ±20 mm | ±20 mm |
| Obstacle Avoidance Method | Obstacle-avoidance LiDAR Optical Depth Sensor | Obstacle-avoidance LiDAR Cameras |
| Maximum Cruise Speed (Unloaded) | 2.0 m/s | 2.0 m/s |
| Maximum Lifting Height | 1450 mm (Lower Lift) 2500 mm (High Lift) | 1450 mm (Lower Lift) 2500 mm (High Lift) |
| Minimum Passage Width | 2000 mm | 2000 mm |
| Maximum Climbing Angle | 6%(3.4°) | 15%(8.6°) |
| Operating Time | ≥ 6h | ≥6h |
| Charging Time | 2 h | 2 h |
| Communication Method | WiFi / Bluetooth / 4G | WiFi / Bluetooth / 4G |
| Driving Modes | Forward / Reverse / Turning | Forward / Reverse / Turning |
