Al Powered 3D Perception Robotic Sweeper
Introduction
MT1-Max
Al Powered 3D Perception Robotic Sweeper
Product Features
Engineered for Industrial and Commercial Semi-Outdoor Environments
Advanced obstacle avoidance ensures stable performance in complex cleaning tasks
Enhanced 3D Perception
Equipped with a 3D perception system (3D LiDAR + multi-sensor fusion), MT1 Max enables precise mapping and real-time obstacle detection. It can efficiently navigate even in challenging environments such as high ceilings, semi-outdoor areas, nighttime conditions, or heavy fog and dust, ensuring stable performance for complex cleaning tasks.
All Types of Debris, Nothing Missed
From dust, cigarette butts, and paper scraps to bottles and fallen leaves, everything can be cleaned in one pass for a thoroughly clean result.
- Extra-wide cleaning path: 70 cm
- Edge-to-edge cleaning: 0 cm clearance
- Large dustbin capacity: 35 L
Intelligent Precision Cleaning
MT1 Max adopts a dual-core architecture, delivering faster AI processing and more accurate results. With a redundant system design for stable operation and seamless hardware–software coordination, sensors and motors work in sync to enable adaptive cleaning, debris recognition, and targeted spot cleaning.
AI Adaptive Adjustment
- Automatic cleaning mode adjustment: reduces power for light debris to prevent scattering, and increases power for heavier debris to ensure thorough cleaning.
- Adaptive path micro-adjustment: automatically adjusts angles to guide debris into the dual side brushes, minimizing missed spots.
Built for Large-Scale Environments
A professional dry cleaning solution designed for facilities with over 100,000 m² of floor area.
Upgraded Intelligent Obstacle Avoidance
Equipped with a newly enhanced 3D LiDAR obstacle avoidance system, MT1 Max enables smarter and more responsive dynamic obstacle avoidance.
Dynamic Vehicle Yielding
MT1 Max can proactively stop to give way to vehicles, pause at intersections, or move aside when necessary, ensuring smooth traffic flow without disruption.
Pedestrian and Animal Avoidance
Quickly responds to sudden appearances of pedestrians or animals, enhancing overall operational safety.
Intelligent Interactive Perception
MT1 Max delivers comprehensive safety upgrades, combining structural protection with intelligent response capabilities. Equipped with audio-visual alerts, slope climbing, obstacle traversal, and active rain avoidance, it can proactively sense and intelligently respond to its environment.
The entire unit features IP54-rated dust and water resistance, ensuring stable and reliable operation.
A water droplet sensor automatically detects moisture and activates a protection and avoidance mode, guiding the robot to a safe area to reduce electrical risks.
Equipped with a 1.2 m high warning light and a safety projection light, combined with audio-visual alerts, the MT1 Max enhances visibility for pedestrians and vehicles, proactively reducing potential risks.

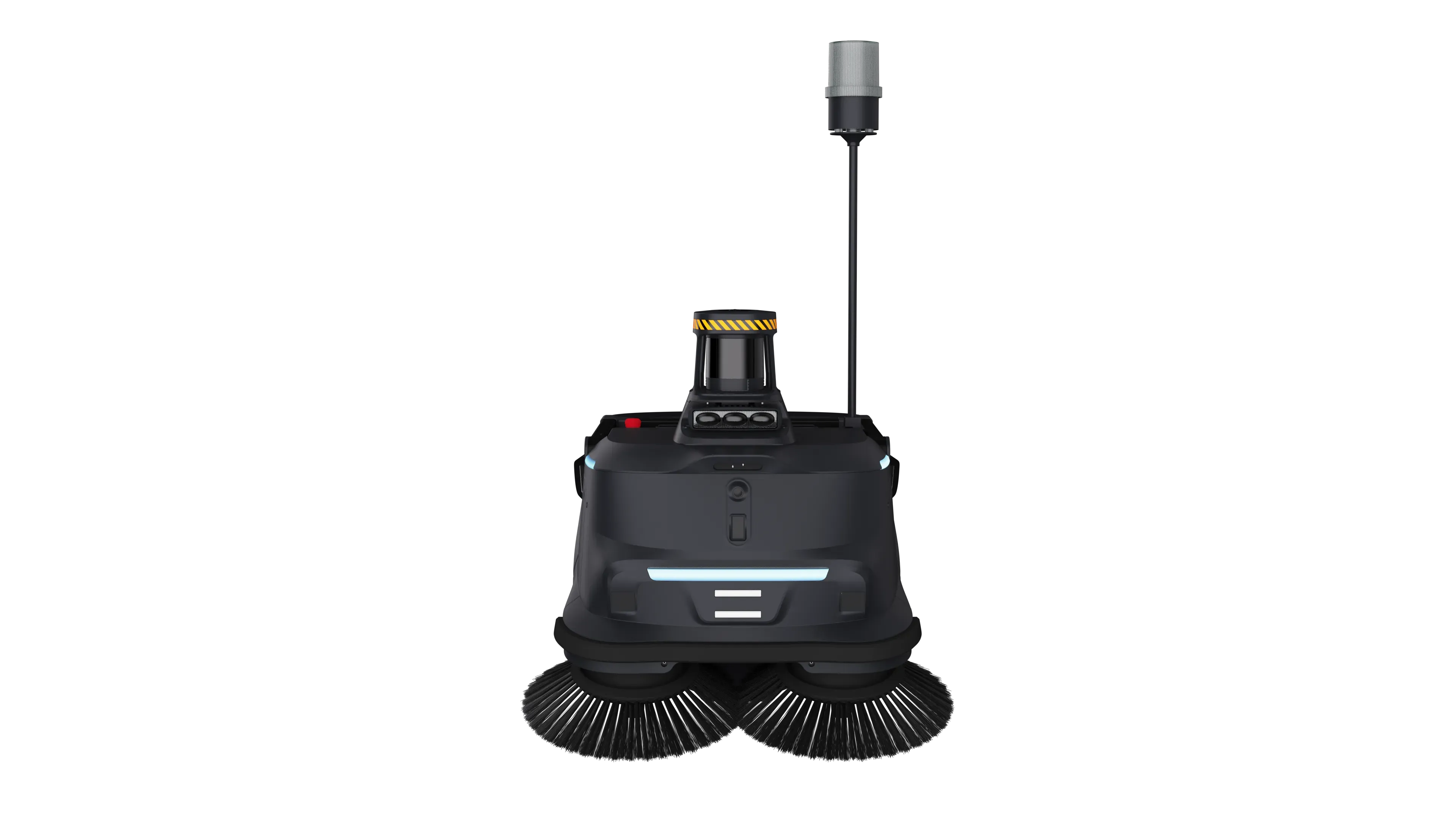

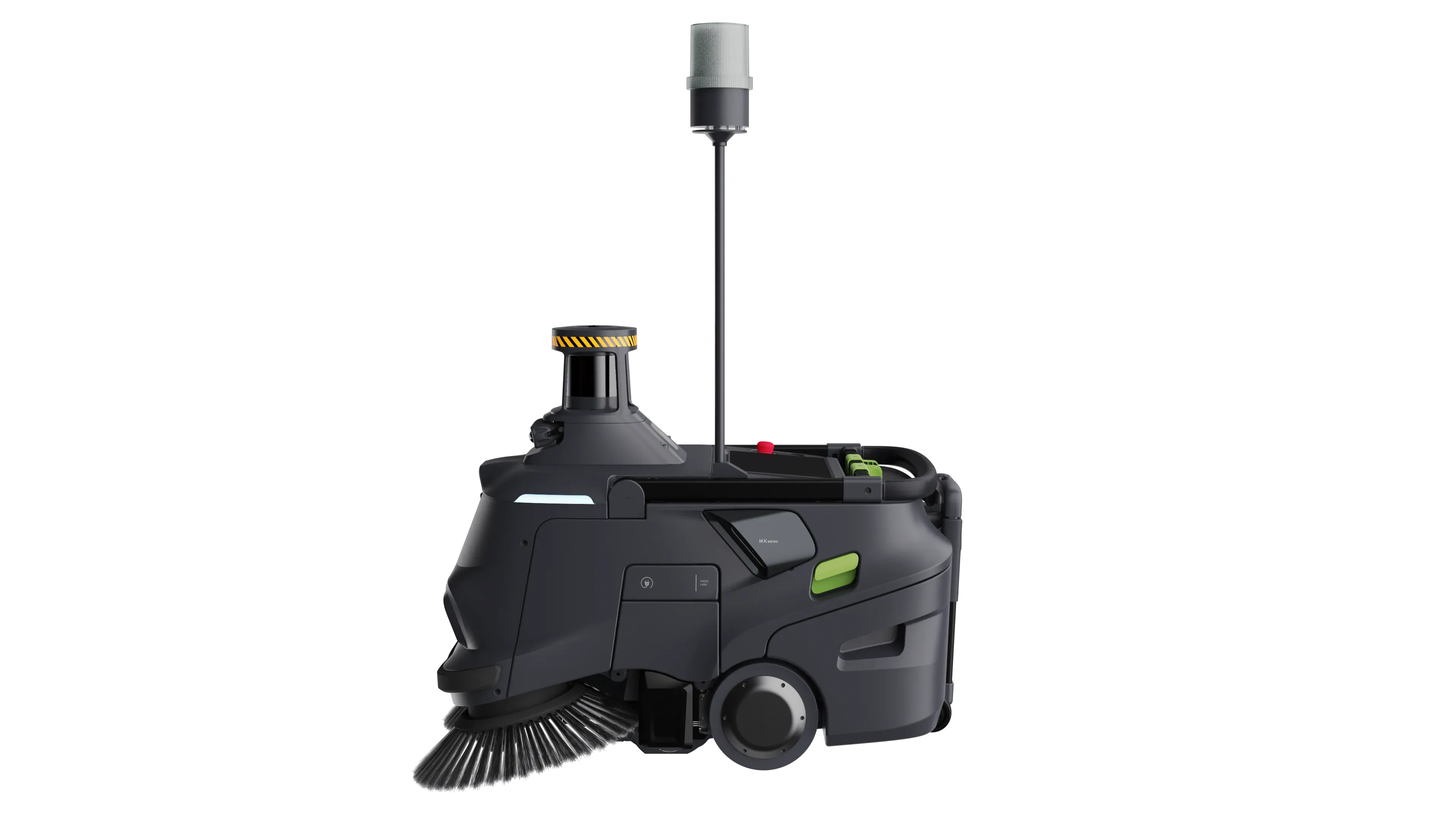

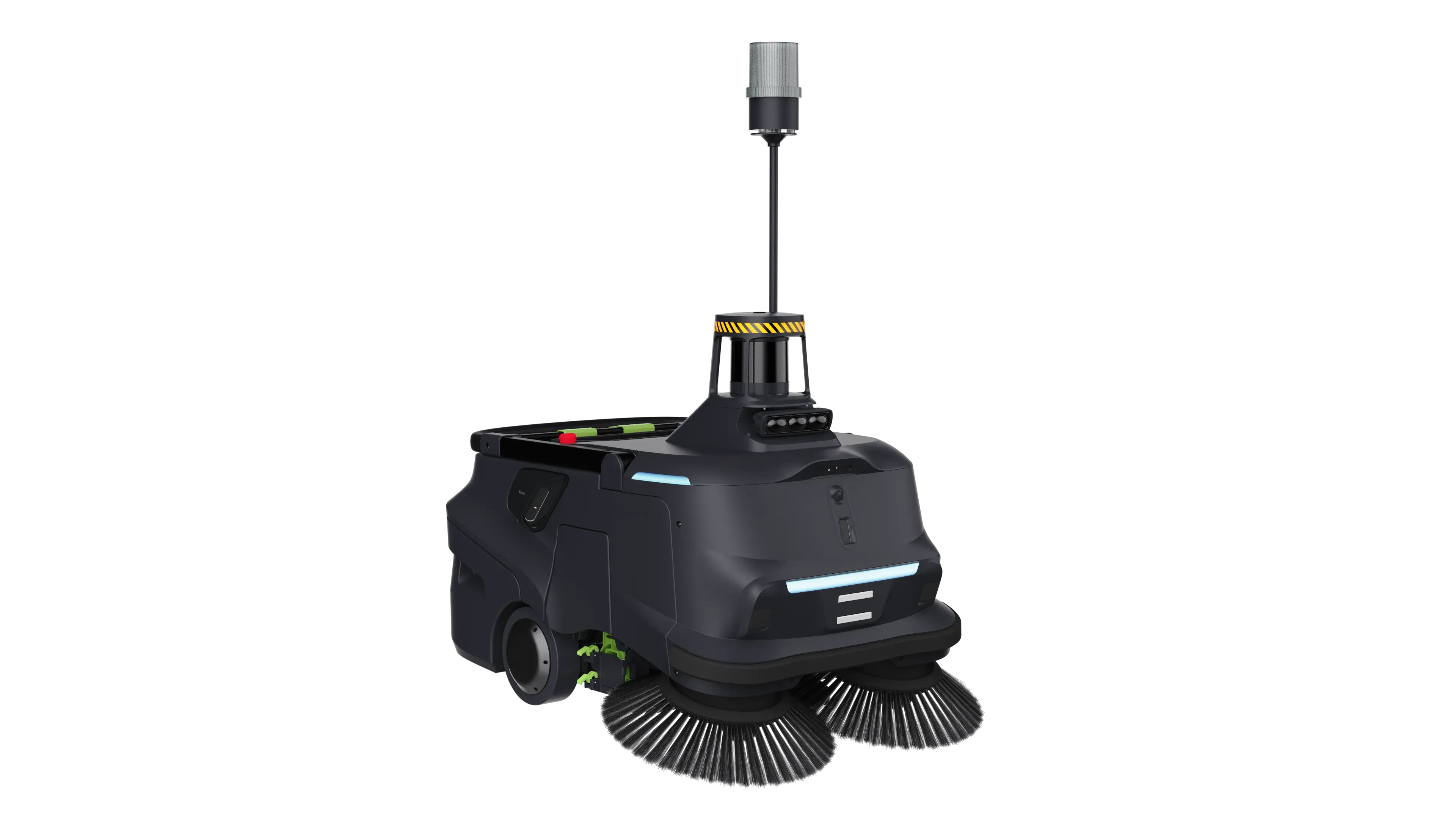

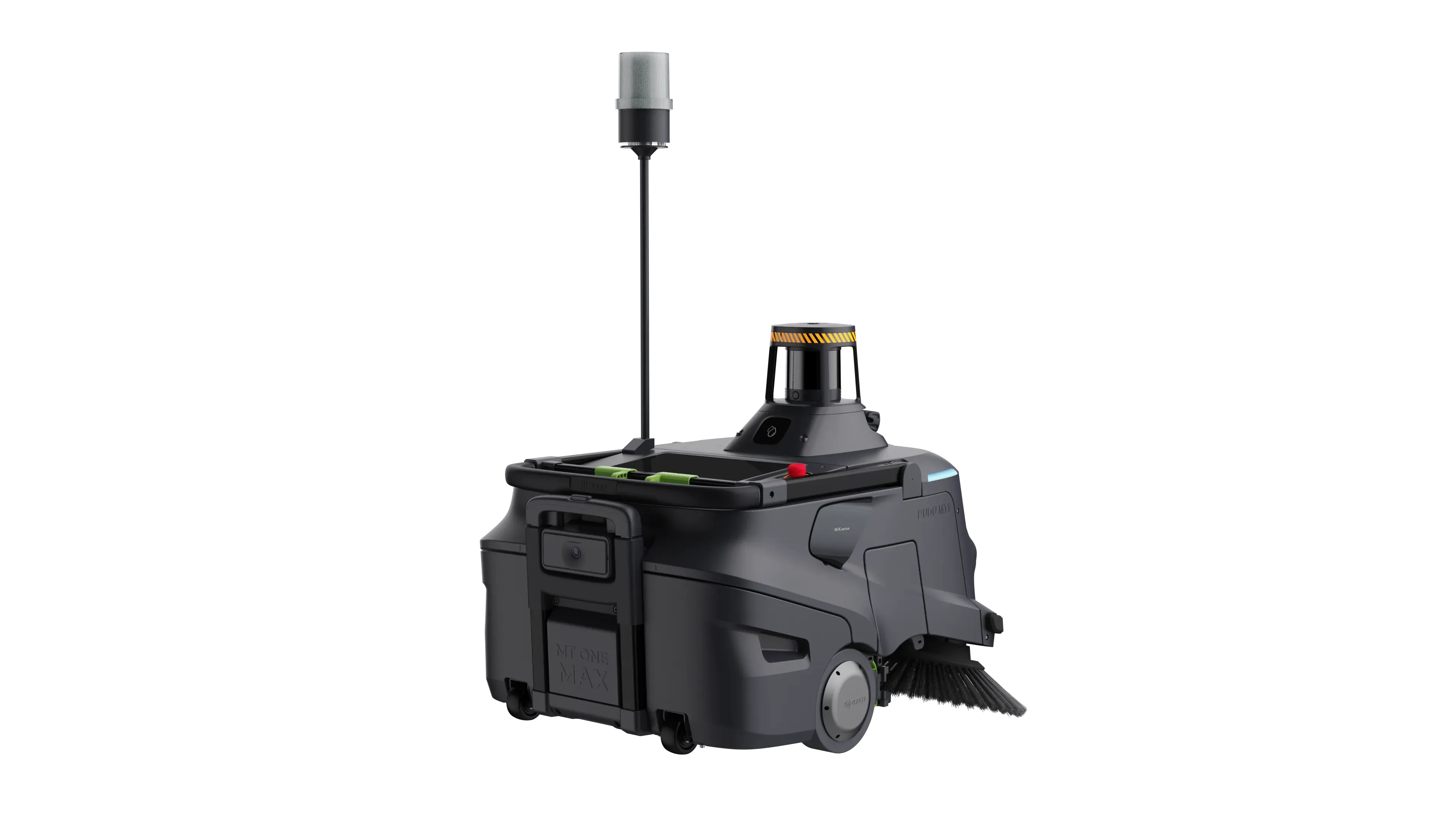

MT1-Max Al Powered 3D Perception Robotic Sweeper
Product Video
Product Specifications
| Model | MT1-Max |
|---|---|
| Dimensions (L × W × H) | 840 × 600 × 675 mm (excluding warning light) |
| Weight | 85 kg |
| Cleaning Modes | Sweeping |
| Cleaning Efficiency | Max. 2200 m²/h (Coverage Mode) Max. 7000 m²/h (Patrol Mode) |
| Charging Time | <3.5 h |
| Operating Time | 5–10 h (Standard mode: 8 h) |
| Battery Capacity | 60 Ah |
| Cruise Speed | 0.2–1.2 m/s (adjustable) |
| Cleaning Width | 70 cm (with side brush) |
| Positioning System | VSLAM + Marker + 3D LiDAR SLAM |
| Passage Capability | Min. width 75 cm / Min. height 52 cm |
| Dust Bag Capacity | 35 L |
