AI Autonomous Pallet Truck
Introduction

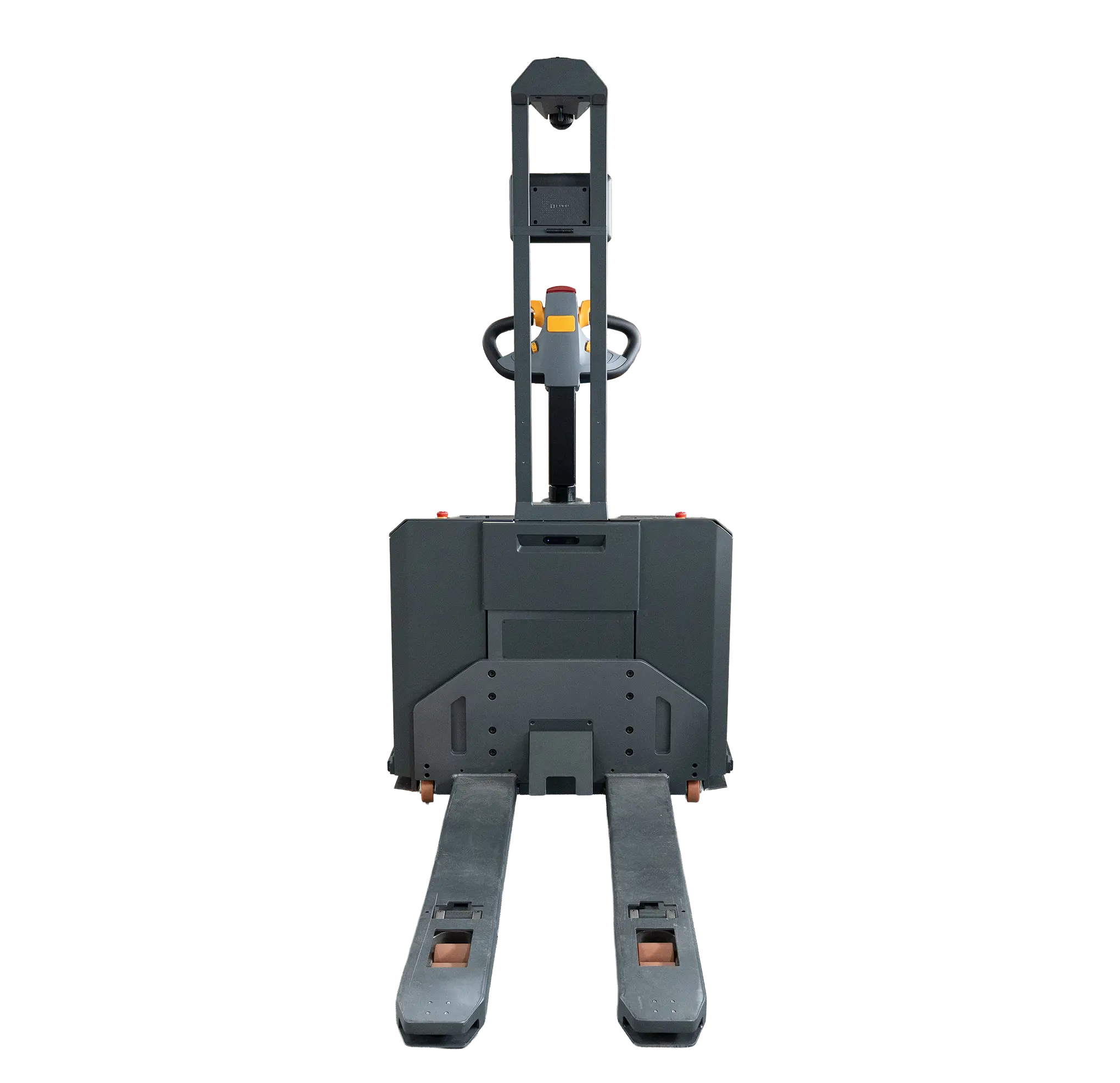

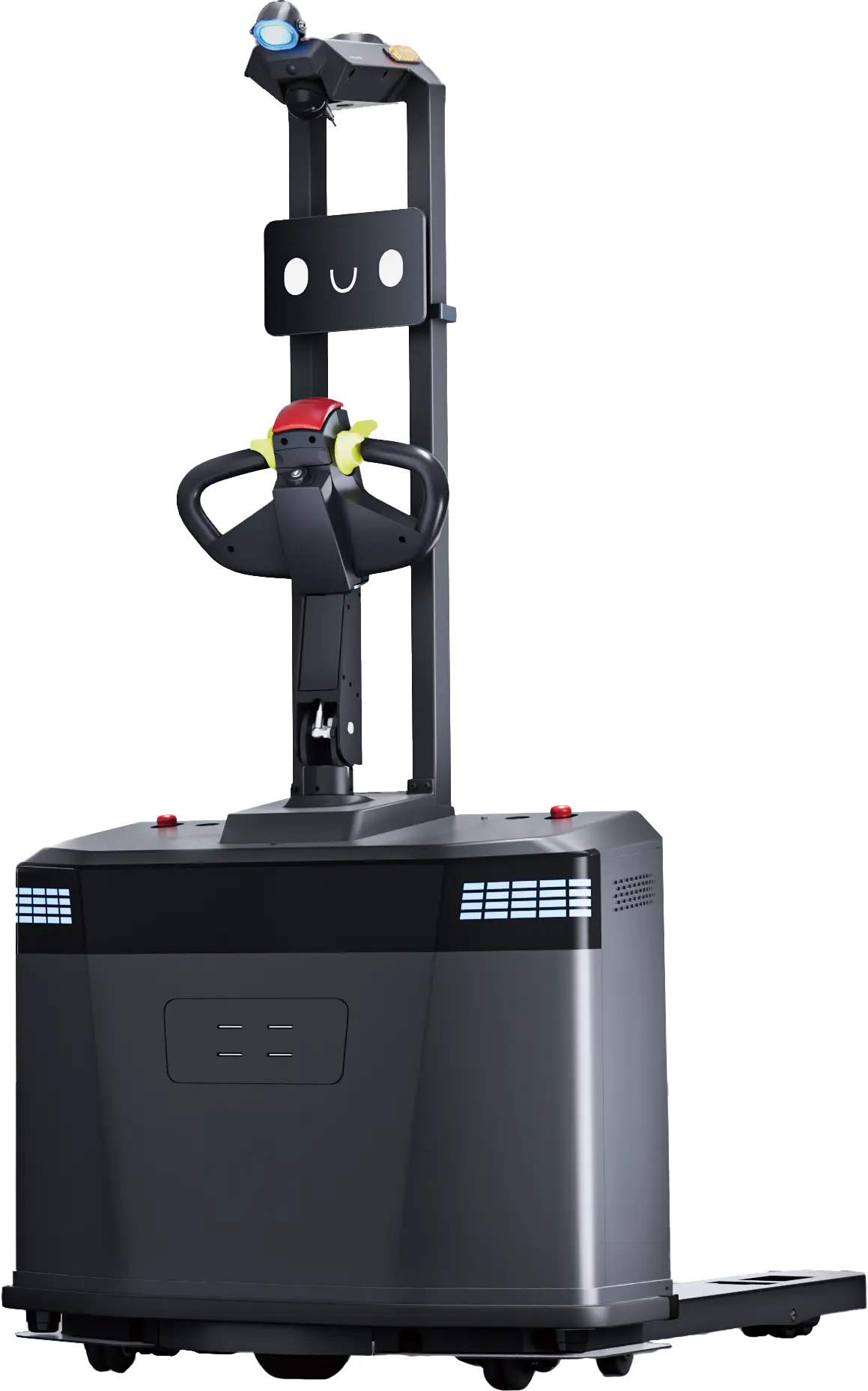

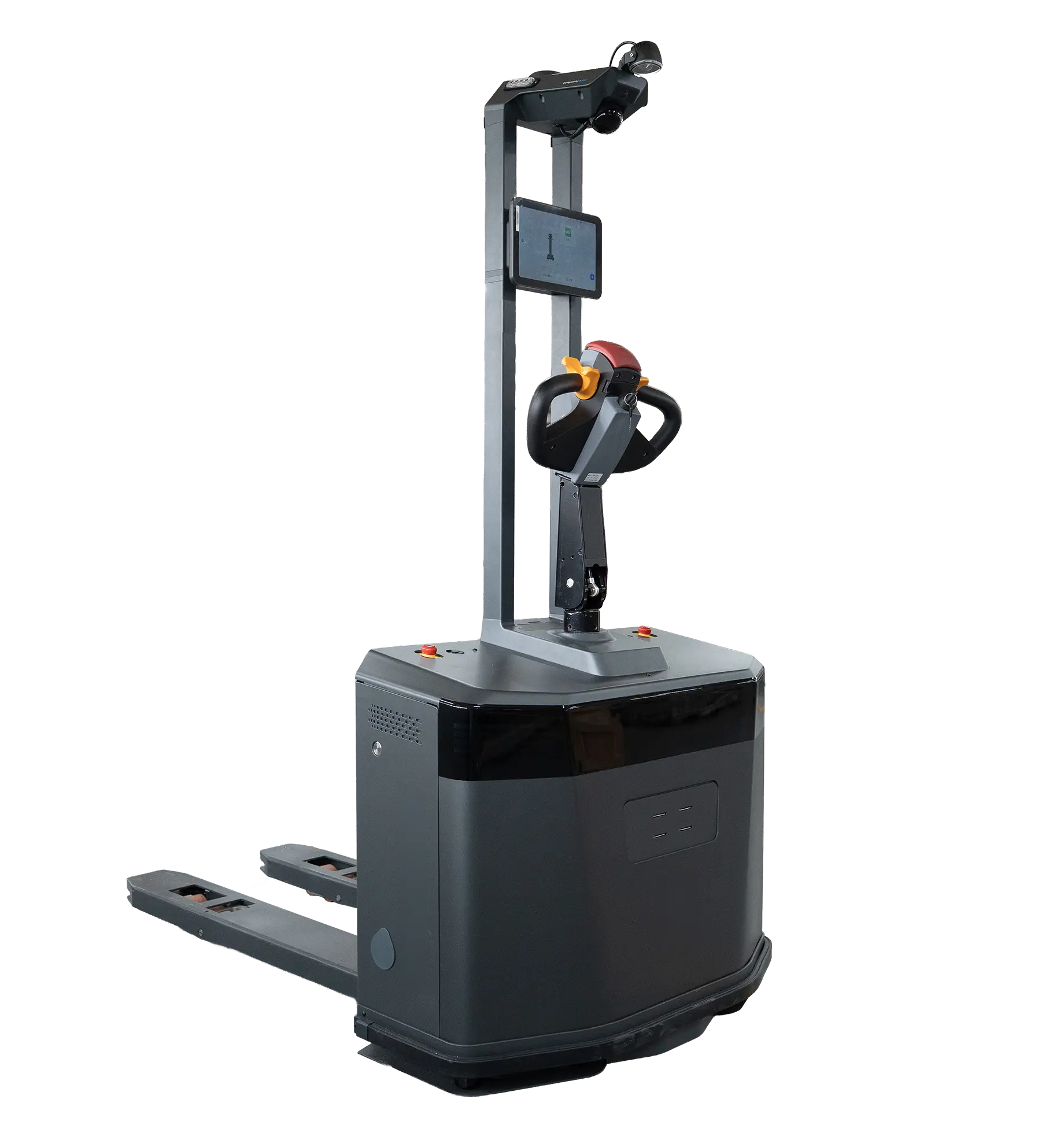

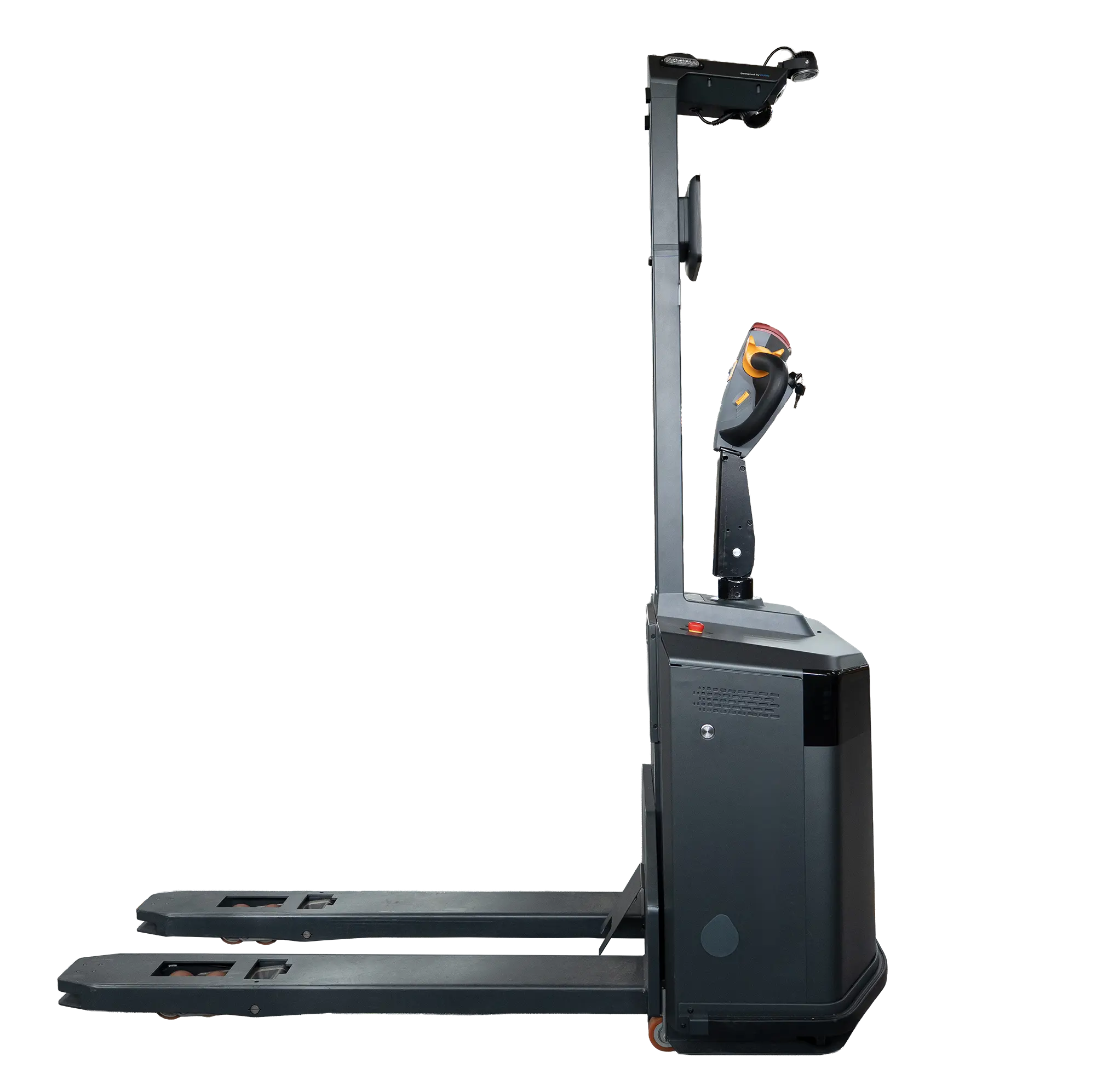

MP2000｜AI Autonomous Pallet Truck
Product Features
AI-native pallet transportation
- 3D SLAM navigation and onboard intelligence for rapid deployment
- Automatic pallet, cargo contour and storage location recognition
- Auto and manual operation modes
High performance
- 2,000 kg payload
- 20-second pallet pickup
- Up to 1.6 m/s unloaded and 1.2 m/s loaded
- Up to 12-hour runtime
Flexible adaptation
- Compatible with major pallet types
- Supports 15 cm offset and 15° angle deviation correction
- Operates in narrow aisles
Advanced safety
- Multi-sensor perception with 2D/3D LiDAR and cameras
- Obstacle avoidance, emergency protection and IoT integration
Product Specifications
| Model | MP2000 |
|---|---|
| Dimensions | 1585×910×1870 mm |
| Weight (with battery) | 420 kg |
| Rated Payload | 2000 kg |
| Lift Height (h3) | 200±5 mm |
| Lowered Fork Height (h13) | 80±5 mm |
| Minimum Turning Radius (Wa) | 1350 mm |
| Fork Dimensions | 1130/160/60 mm |
| Fork Width | 550/620 mm |
| Compatible Pallets | Stringer / Block / 9-leg Pallets |
| Pallet Recognition | Supports 15 cm offset and 15° deviation |
| Operation Mode | Automatic / Manual |
| LiDAR Obstacle Avoidance | Available |
| 3D Obstacle Avoidance | Available |
| Collision Strip Detection | Available |
| Pallet Presence Detection | Available |
| Emergency Stop Button | Available |
| Warning Light | Available |
| Position Light | Available |
| Fork Safety Protection | Fork-tip Laser Protection |
| Audible & Visual Alarm | Available |
| Navigation | 3D LiDAR-SLAM, VSLAM |
| Drive Method | Steering Wheel Drive |
| Travel Speed | Loaded 1.2 m/s, Unloaded 1.6 m/s |
| Minimum Turning Aisle Width | 2000 mm |
| Right-angle Aisle Width (1000×1200 Pallet) | 2000 mm |
| Right-angle Aisle Width (800×1200 Pallet) | 1960 mm |
| Threshold Crossing | 10 mm |
| Gap Crossing | 35 mm |
| Gradeability | Loaded 3°, Unloaded 8° |
| Battery Type | LiFePO4 |
| Charging Method | Manual / Automatic |
| Battery Specification | 51.2V, 54.9Ah / 60Ah |
| Runtime | Unloaded 12h, Loaded 6h |
| Recharge Time | 2h |
