Al-Native Large Scrubber-Dryer Robot
Introduction

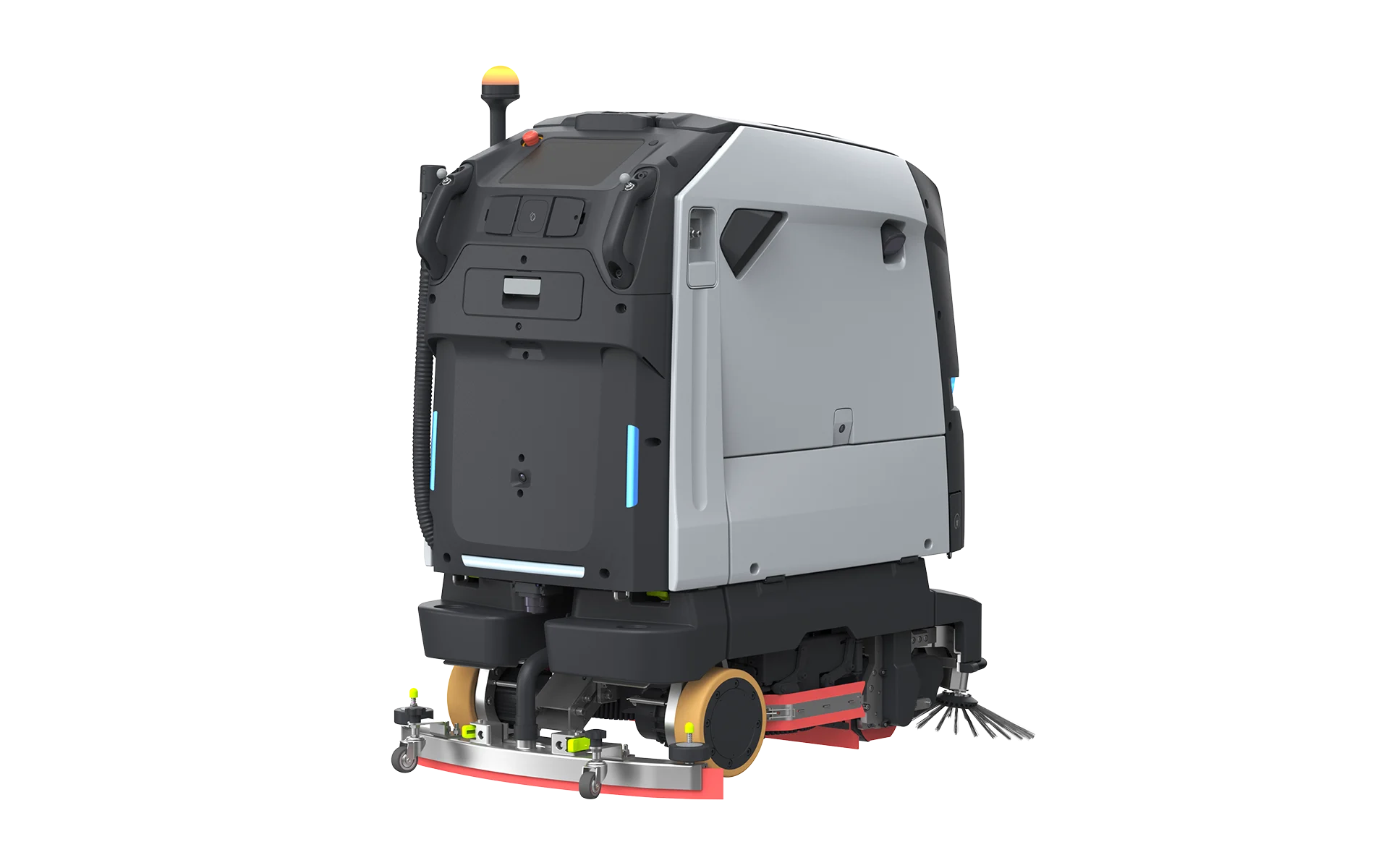

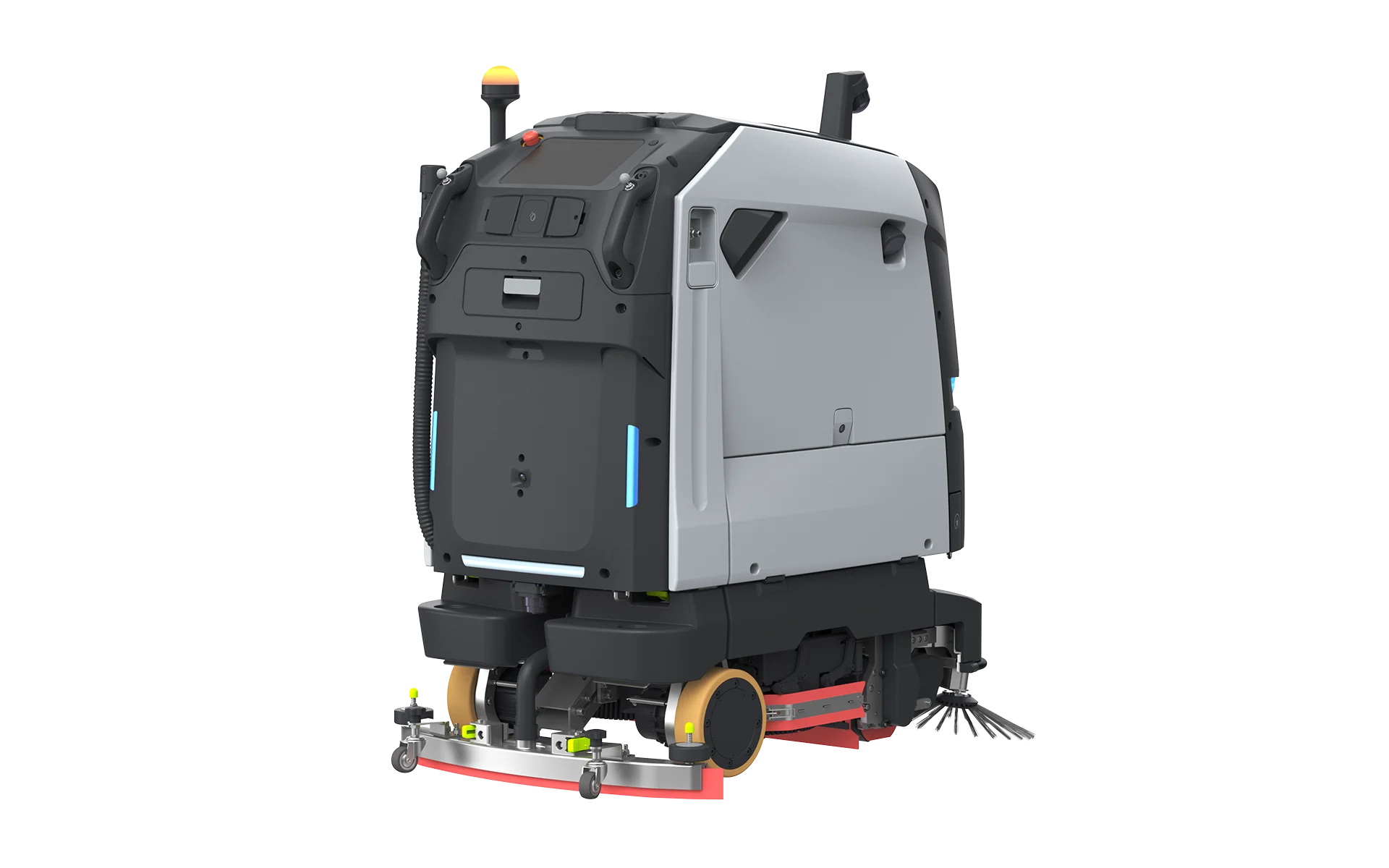

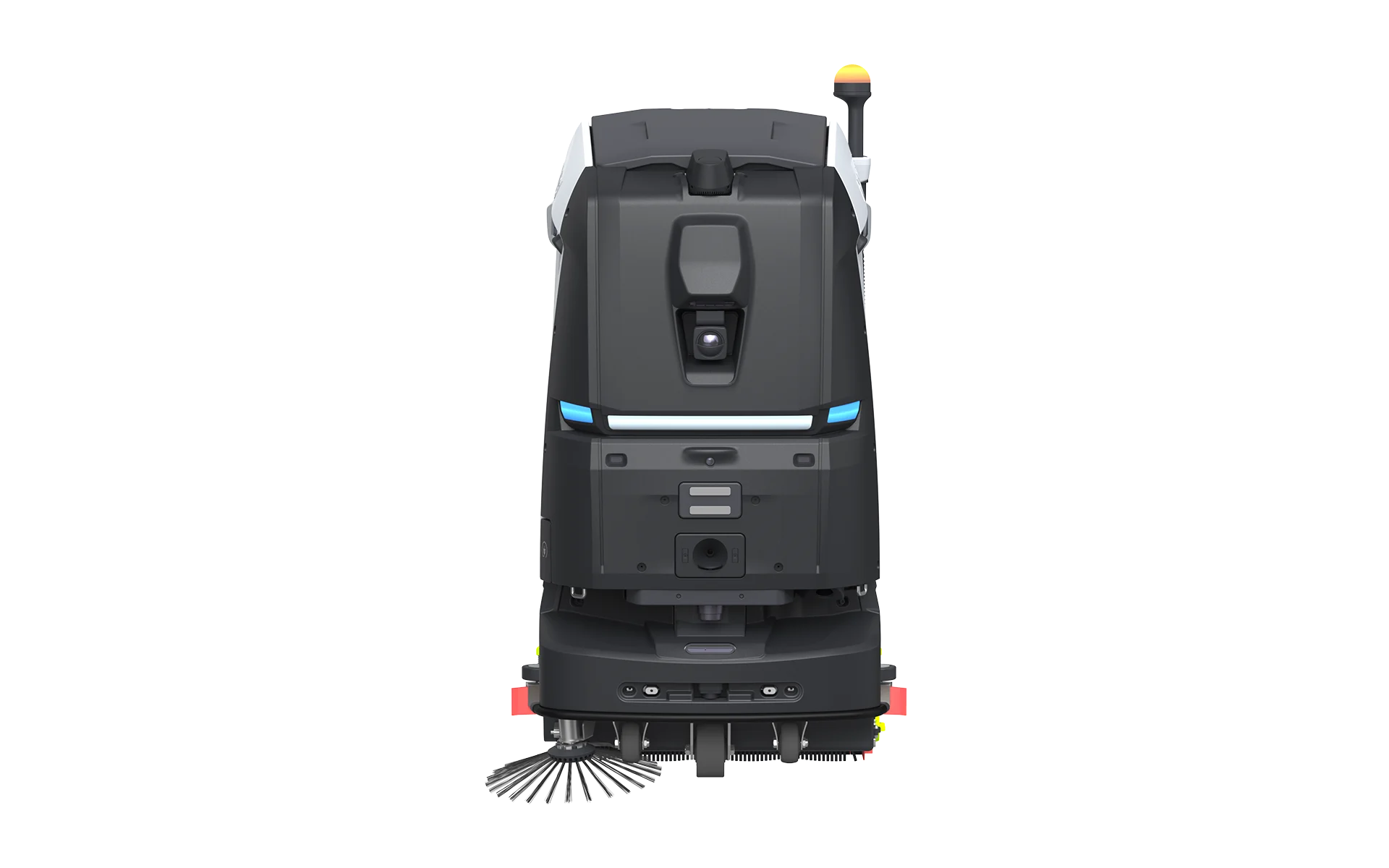

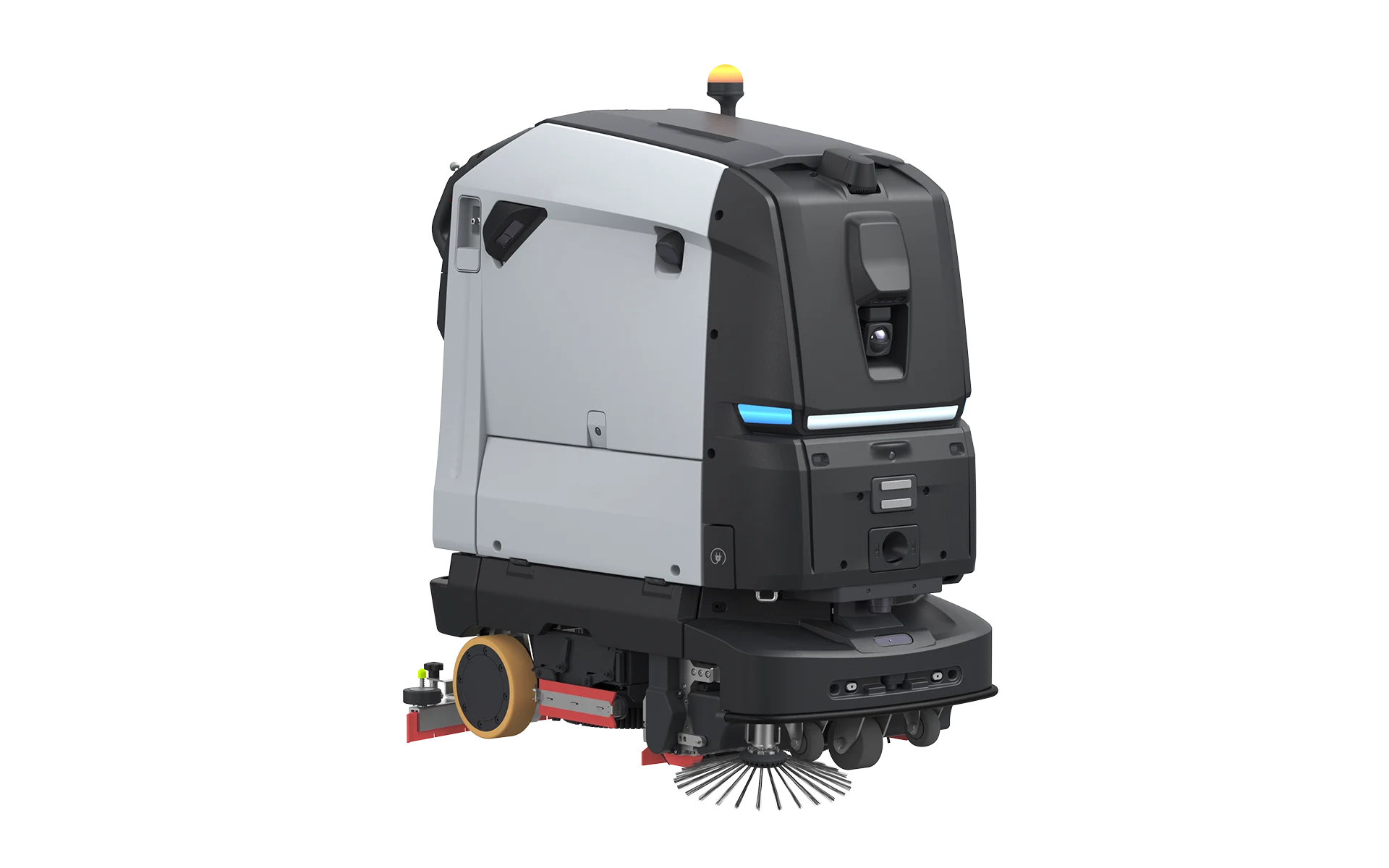

BG1 Series｜Al-Native Large Scrubber-Dryer Robot
Product Features
BG1 Series｜Al-Native Large Scrubber-Dryer Robot
Real-time AI-powered stain detection enables autonomous cleaning decisions and adaptive cleaning methods. Combined with inspection-based cleaning, on-demand dispatch, and cleaning heatmap analytics, it delivers intelligent floor-cleaning management across the entire facility.
3D Vision Perception System for Precision and Safety
- 3D VSLAM + LiDAR + AI Cameras + Multi-Sensor Fusion
- Real-time detection of dry and wet stains, vehicles, pedestrians, obstacles, and cleaning performance
Sweep-Before-Scrub Architecture for Maximum Large-Scale Cleaning Efficiency
- Completes sweeping and scrubbing in a single pass
- Scrubbing width: 550 mm + Sweeping width: 708 mm
- Maximum cleaning efficiency: Scrubbing mode: 2,000 m²/h, Patrol mode: 6,000 m²/h
- 75 L clean water tank + equivalent 90 Ah battery capacity, delivering up to 7.5 hours of runtime
Extended Edge-Cleaning Brushes for Blind-Spot-Free Cleaning
- Side brushes automatically extend to clean along walls, shelves, and corners
- Reduces residual debris and minimizes manual touch-up cleaning
- Dual cleaning performance completed in a single pass
24/7 Autonomous Cleaning with Ultra-Fast Maintenance
- Paired with a workstation for automatic water refill, drainage, and charging—enabling fully unattended 24/7 operation
- Industry-first automatic brush installation design
- Core consumables can be replaced in just one minute for simplified daily maintenance
Product Specifications
| Model | BG1 / BG1 Pro |
|---|---|
| Dimensions (L × W × H) | 1195 x 760 x 1303 mm (with squeegee) 1120 x 660 x 1303 mm (without squeegee) |
| Weight | 344 kg |
| Battery Capacity | 90 Ah (48 V platform, equivalent to 24 V 180 Ah) |
| Operating Time | Front sweeping + rear scrubbing mode: up to 7.5 h (standard mode: 5.5 h+) |
| Charging Time | Approx. 3 h in high-voltage regions (AC ≥180V) Approx. 4.5 h in low-voltage regions (AC ≤180V) Adapter automatically adjusts brush pressure |
| Cleaning Modes | Front sweeping + rear scrubbing / Dust Mopping (optional) / Polishing (optional) Supports side-brush extension cleaning, dual-detergent instant dispensing |
| Positioning System | BG1: LiDAR + 3D VSLAM Fusion Positioning BG1 Pro: 3D LiDAR + 3D VSLAM Fusion Positioning |
| Minimum Passage Width | 85 cm |
| Cleaning Width | 550mm / 708mm (with side brushes) |
| Cleaning Efficiency | Coverage mode: Max. 2,000 m²/h Patrol mode: Max. 6,000 m²/h |
| Dust Bag Capacity | 5L |
| Water Tank Capacity | Clean water tank: 75 L / Waste water tank: 60 L |
| Detergent Tank | Dual detergent tanks, total capacity 7 L |
| Unattended Operation | Supported (requires workstation) |
