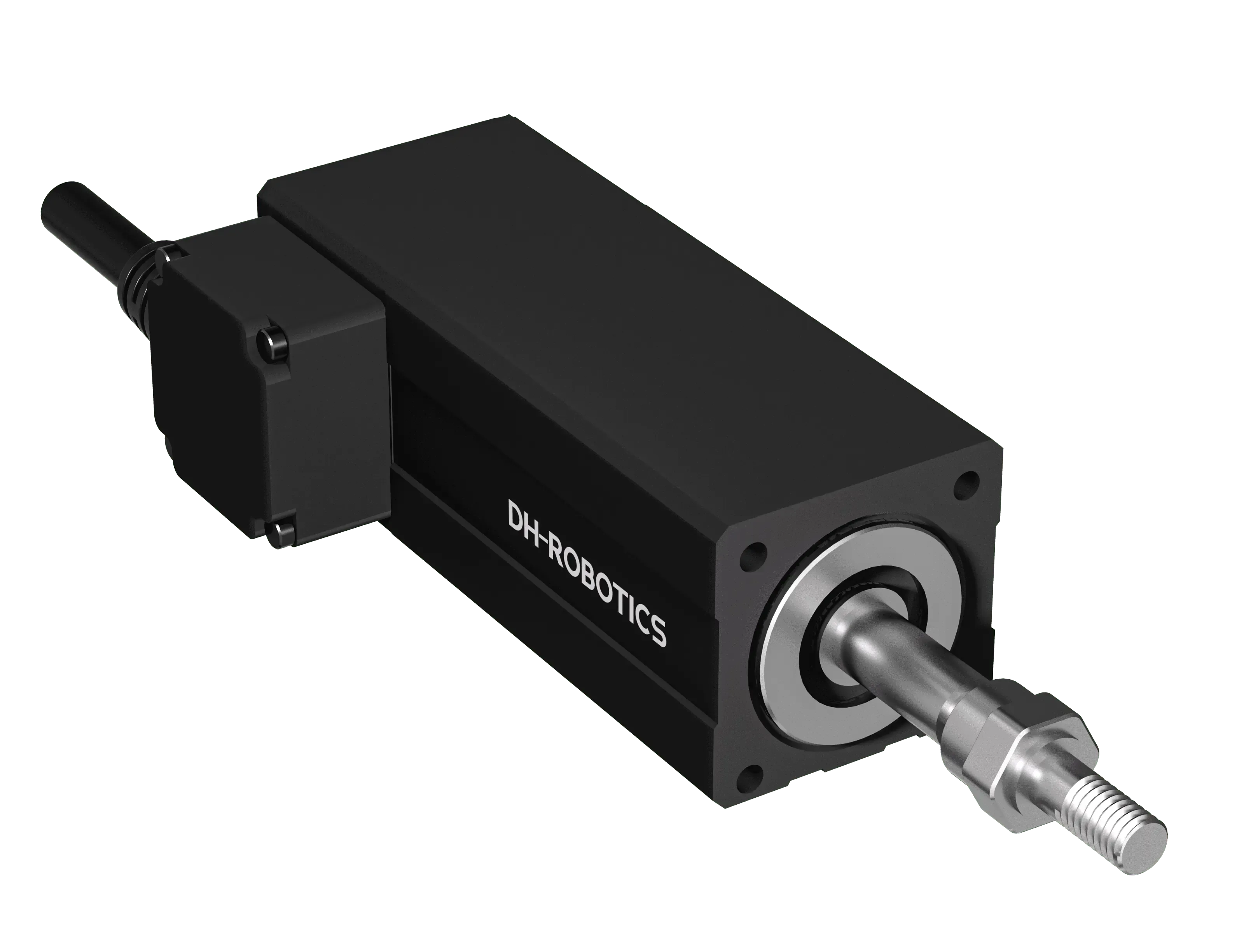

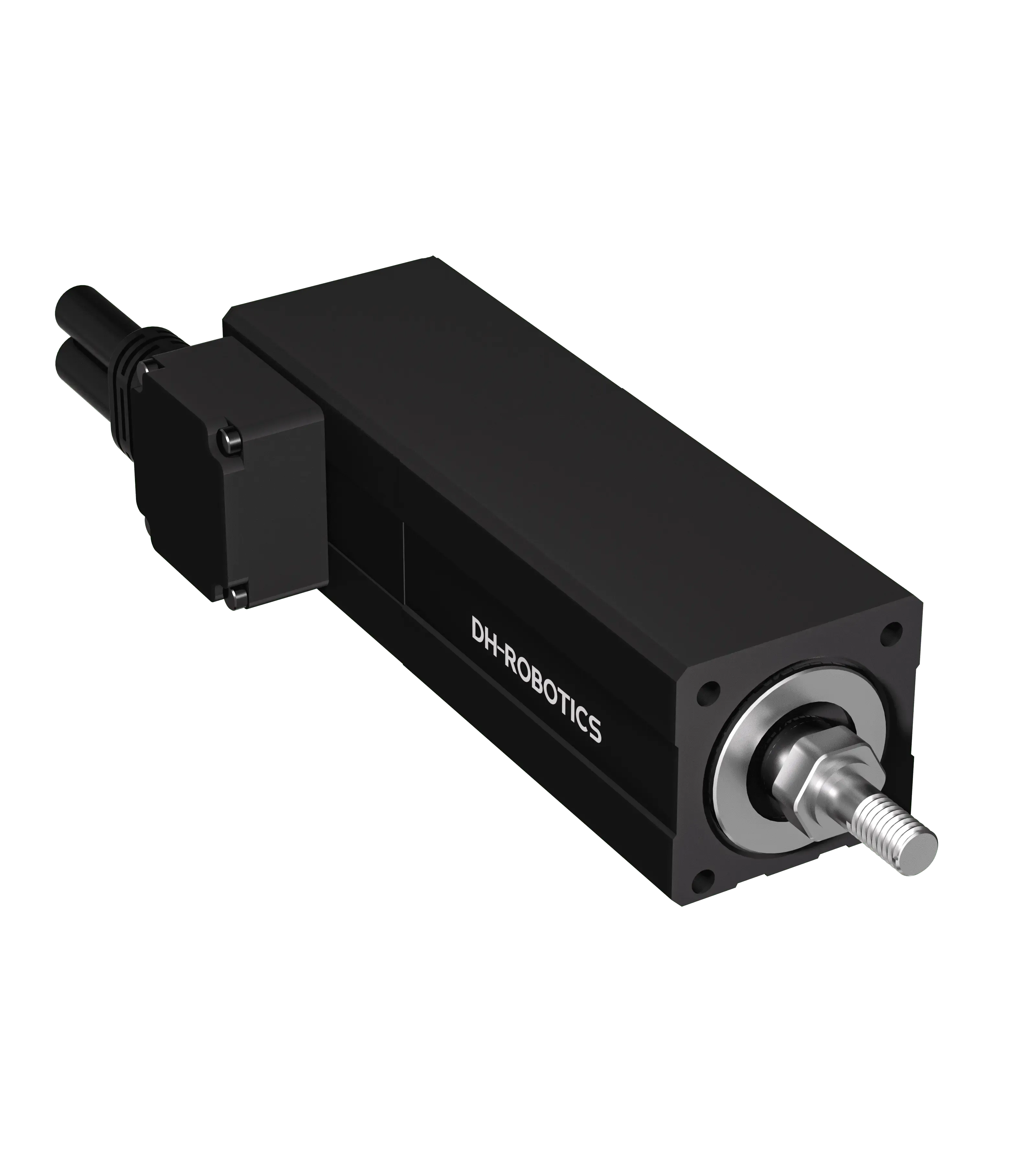

DH-Robotics Rod-Type Electric Actuator

The RCEA Series is a rod-type electric actuator featuring high energy density, heavy load capacity, and a compact design. It is suitable for a wide range of applications and capable of performing complex tasks such as pick-and-place, arrangement, and material handling.

Product Features:

• High Energy Density, Heavy Load Capacity
  High-rigidity structural design combined with high-performance linear guides supports a maximum horizontal load of up to 8 kg, outperforming comparable products on the market.
• Compact Design, Space-Saving
  Integrated motor and drive controller design with a compact structure. With a body width of only 35 mm, it supports multi-surface mounting and enables easy installation in confined spaces.
• Fast Response and High Repeatability
  Equipped with a high-performance servo motor and precision ball screw, delivering fast motion speeds up to 330 mm/s, acceleration up to 0.3 G, and repeatability of 0.01 mm to meet diverse motion requirements.

Product Specifications:
