Industrial Slim Parallel Electric Gripper
Introduction

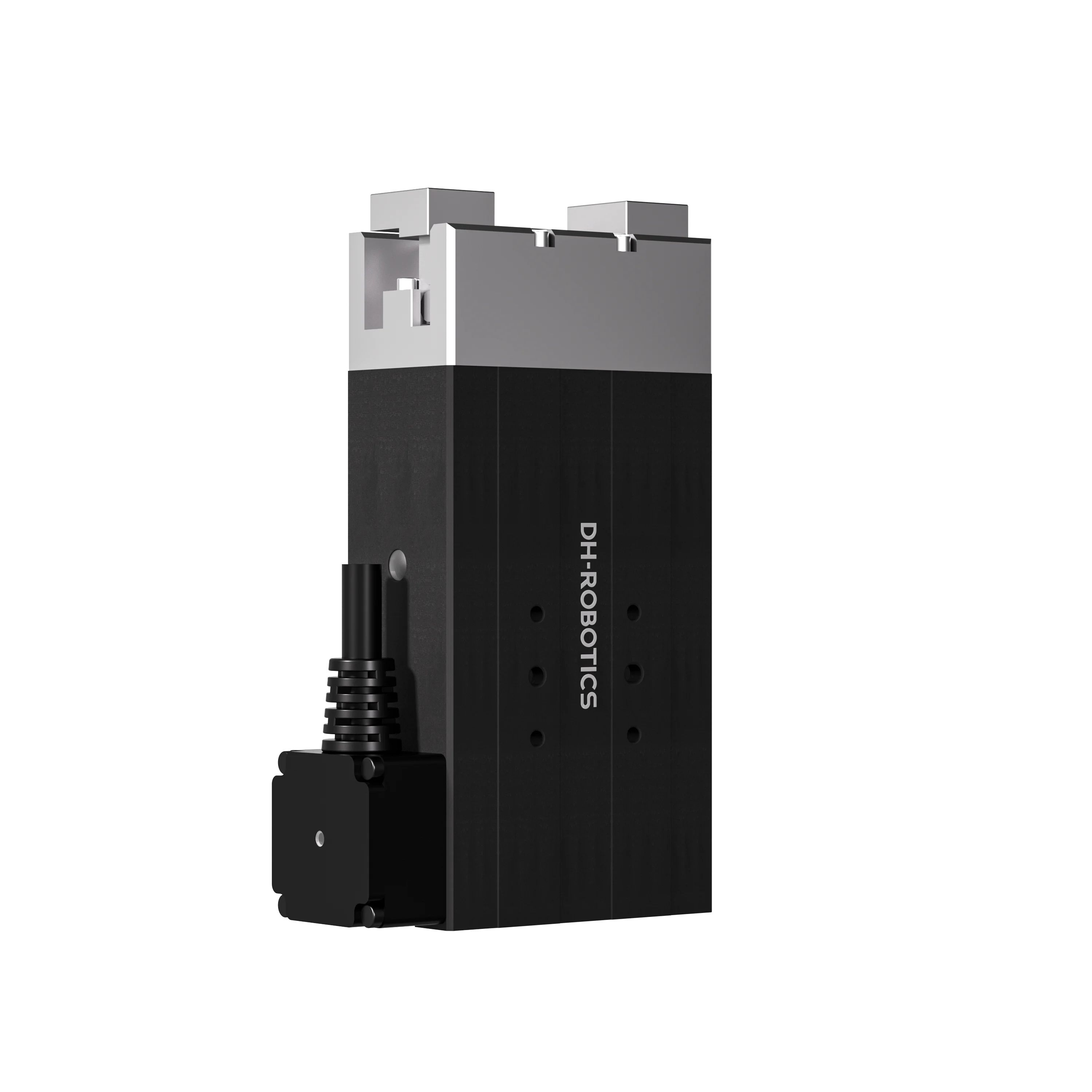

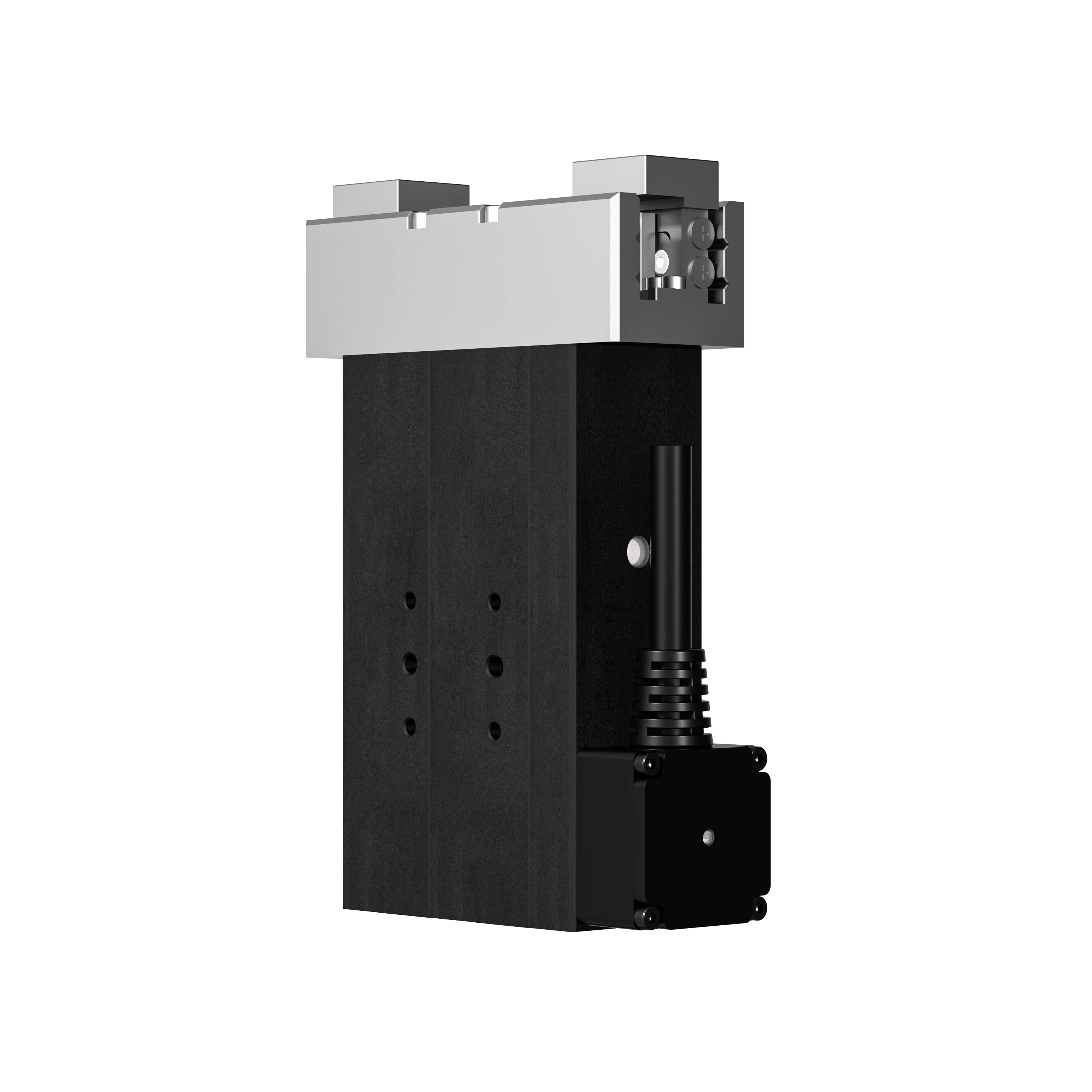

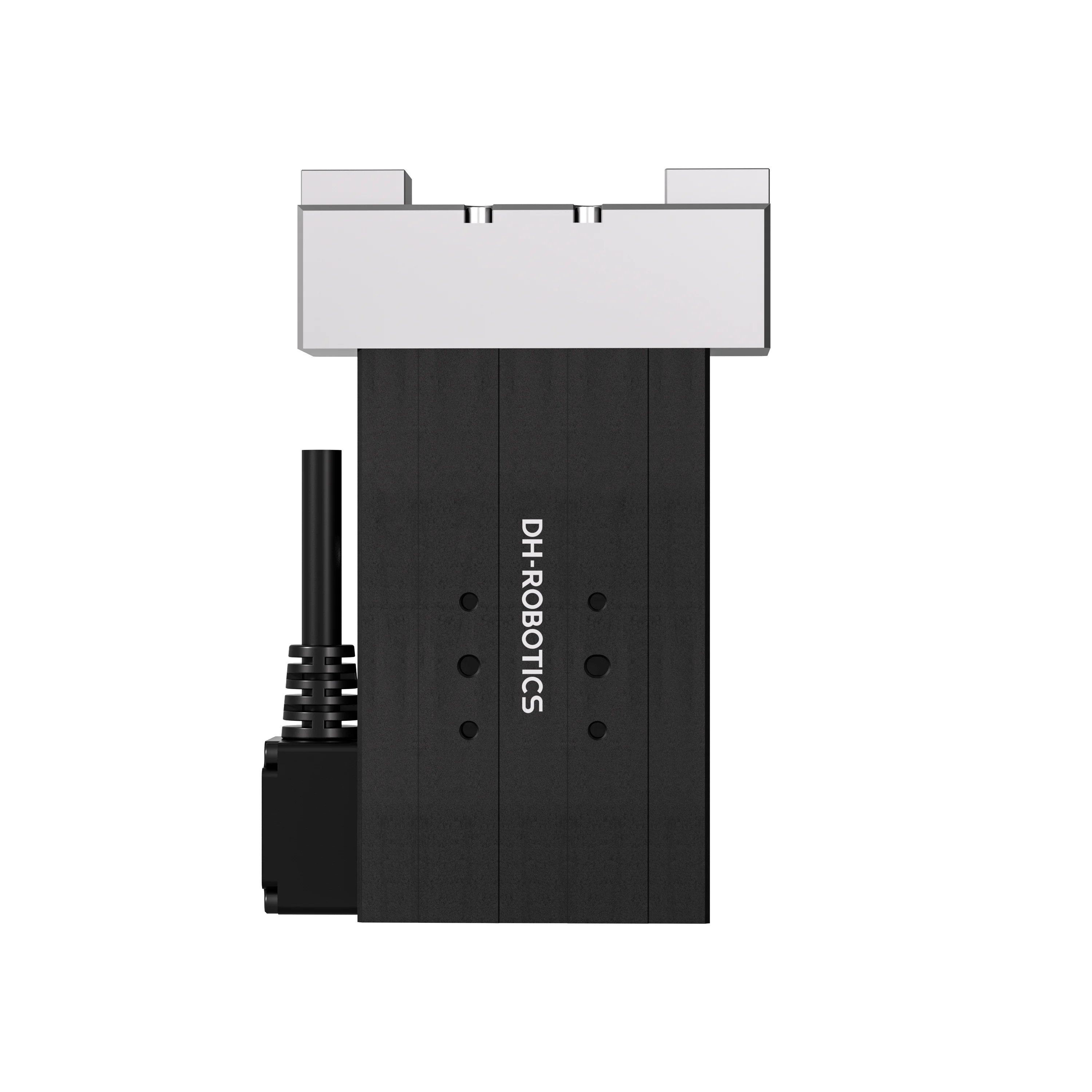

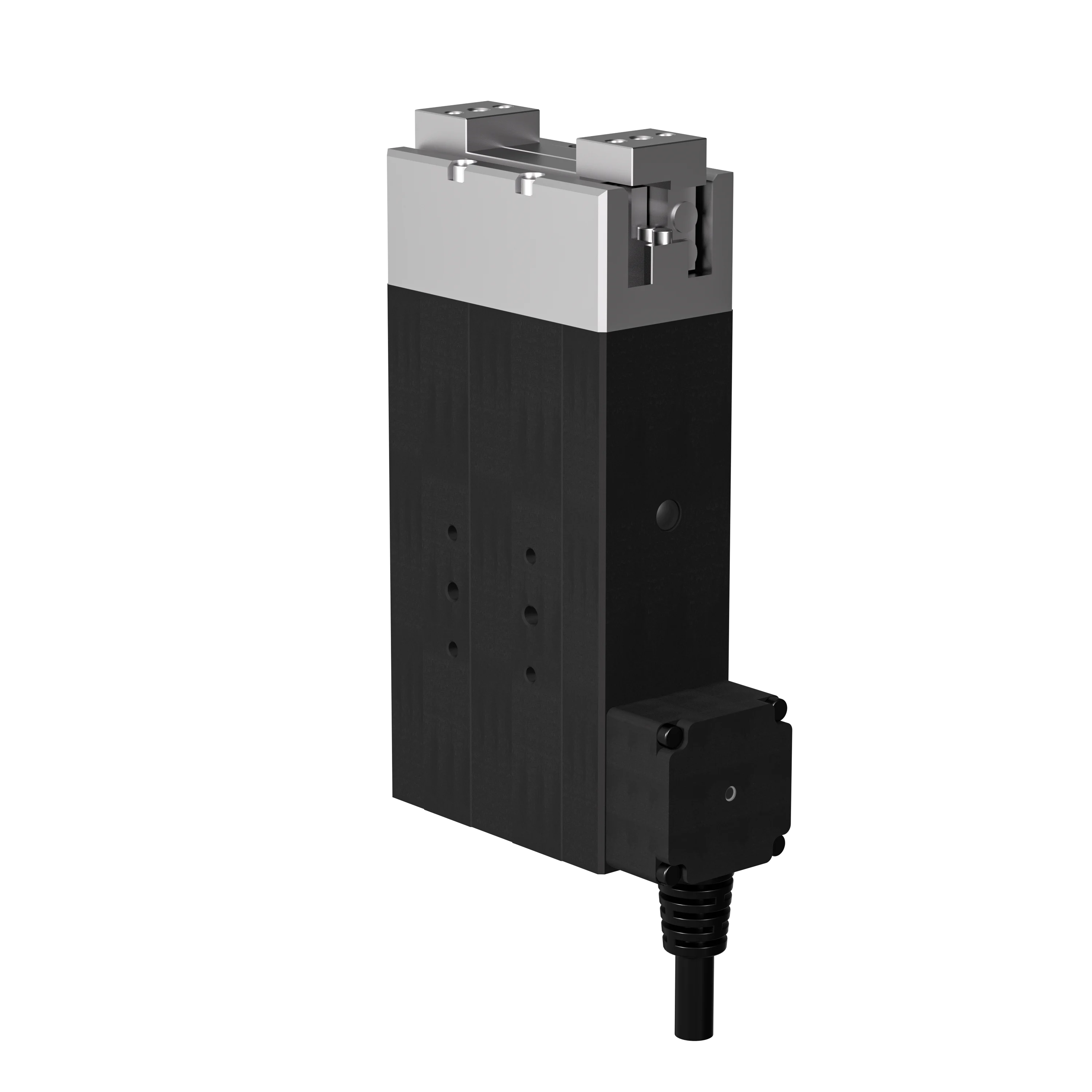

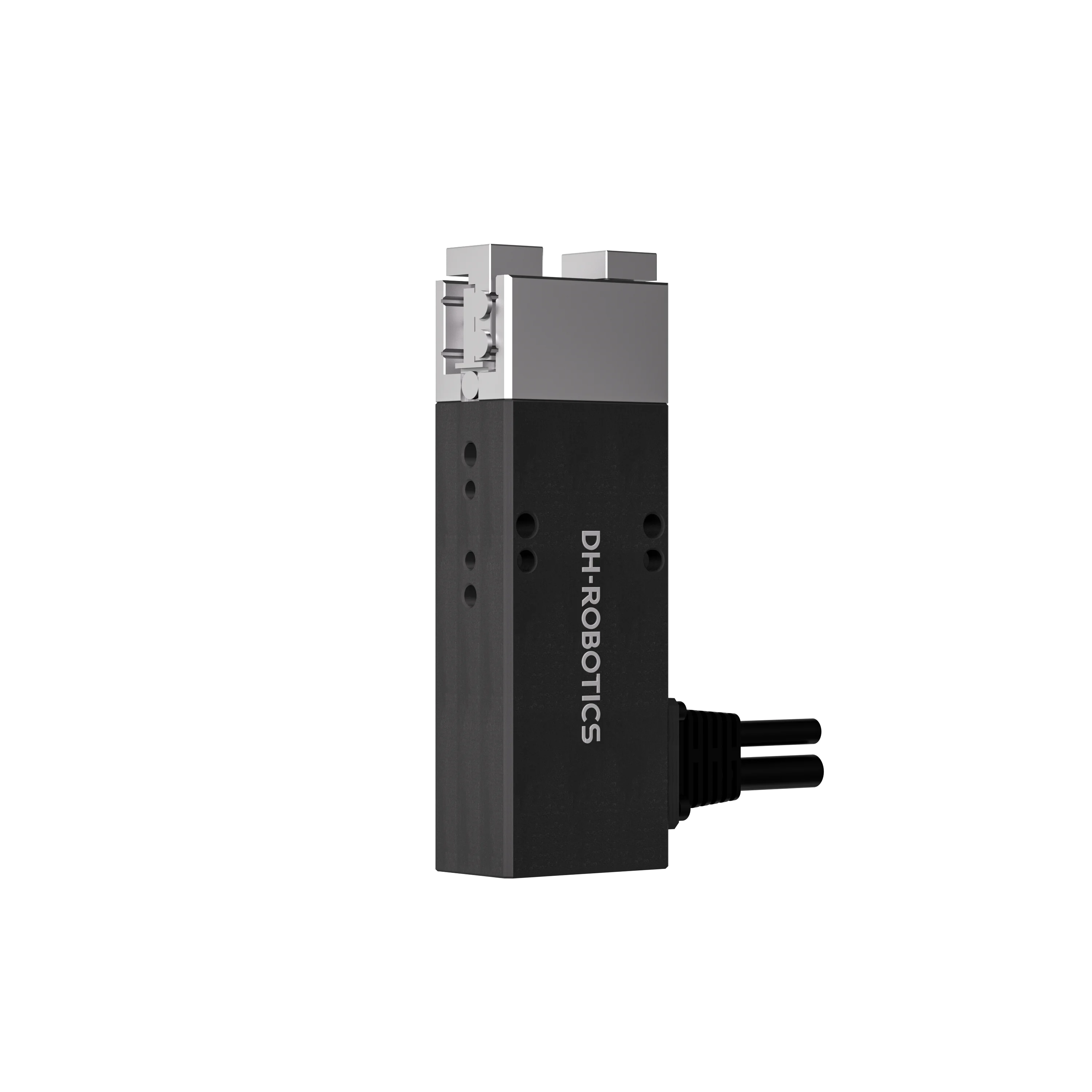

DH-Robotics Industrial Slim Parallel Electric Gripper
The PGEA Series from DH-Robotics is an industrial slim parallel electric gripper featuring precise force control, a compact form factor, and fast response. It has become a leading product in the electric gripper market.
Product Features:
- Compact Size｜Flexible Installation
With a slim 18 mm body and dense mechanical design, it supports at least five mounting methods, adapting to various gripping needs while saving design space. - Fast Response
Opening/closing time as quick as 0.25 s, meeting high-speed and stable production line requirements. - Precise Force Control
Featuring a specialized transmission design and motion-control algorithm for continuous force adjustment, achieving up to 0.1 N repeatability.
Product Specifications:
| Model | Gripping Force (per jaw)(N) | Workpiece Weight (kg) | Stroke (mm) | IP Class |
|---|---|---|---|---|
| PGEA-2-10 | 0.8-2 | 0.05 | 10 | IP40 |
| PGEA-15-10 | 6-15 | 0.1 | 10 | IP40 |
| PGEA-15-26 | 6-15 | 0.25 | 26 | IP40 |
| PGEA-50-26 | 15-50 | 1 | 26 | IP40 |
| PGEA-100-26 | 30-100 | 2 | 26 | IP40 |
| PGEA-50-40 | 15-50 | 1 | 40 | IP40 |
