Industrial Slim-type Electric Parallel Gripper
Introduction

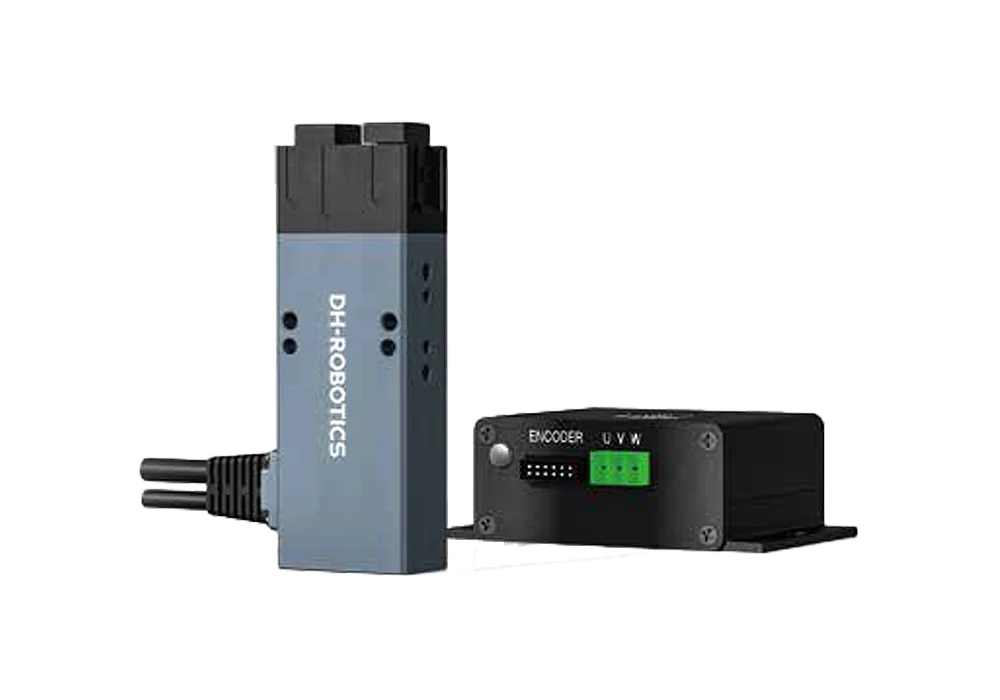

DH-Robotics Industrial Slim-type Electric Parallel Gripper
The PGE series is an industrial slim-type electric parallel gripper. With its precise force control, compact design, and high operating speed, it has become a popular product in the field of industrial electric grippers.
- Compact Size | Flexible Installation
With a minimum body thickness of only 18 mm, the PGE series features a compact structure and supports at least five flexible installation methods, meeting diverse clamping requirements while saving valuable design space. - High Operating Speed
The fastest opening and closing time can reach 0.2 s / 0.2 s, satisfying the high-speed and stable clamping needs of automated production lines. - Precise Force Control
Equipped with a specialized driver design and advanced motion compensation algorithm, the PGE series provides continuously adjustable gripping force, achieving force repeatability of up to 0.1 N.
Product Specifications:
| Model | Gripping Force (per jaw)(N) | Workpiece Weight (kg) | Stroke (mm) | Opening / Closing Time (S) | IP Class |
|---|---|---|---|---|---|
| PGE-2-12 | 0.8~2 | 0.05 | 12 | 0.15 | IP40 |
| PGE-5-26 | 0.8~5 | 0.1 | 26 | 0.3 | IP40 |
| PGE-8-14 | 2~8 | 0.1 | 14 | 0.3 | IP40 |
| PGE-15-10 | 6~15 | 0.25 | 10 | 0.3 | IP40 |
| PGE-15-26 | 6~15 | 0.25 | 26 | 0.5 | IP40 |
| PGE-50-26 | 15~50 | 1 | 26 | 0.45/0.45s | IP40 |
| PGE-50-40 | 15~50 | 1 | 40 | 0.6s/0.6s | IP40 |
| PGE-100-26 | 30~100 | 2 | 26 | 0.5 | IP40 |
