Centric Electric Gripper
Introduction

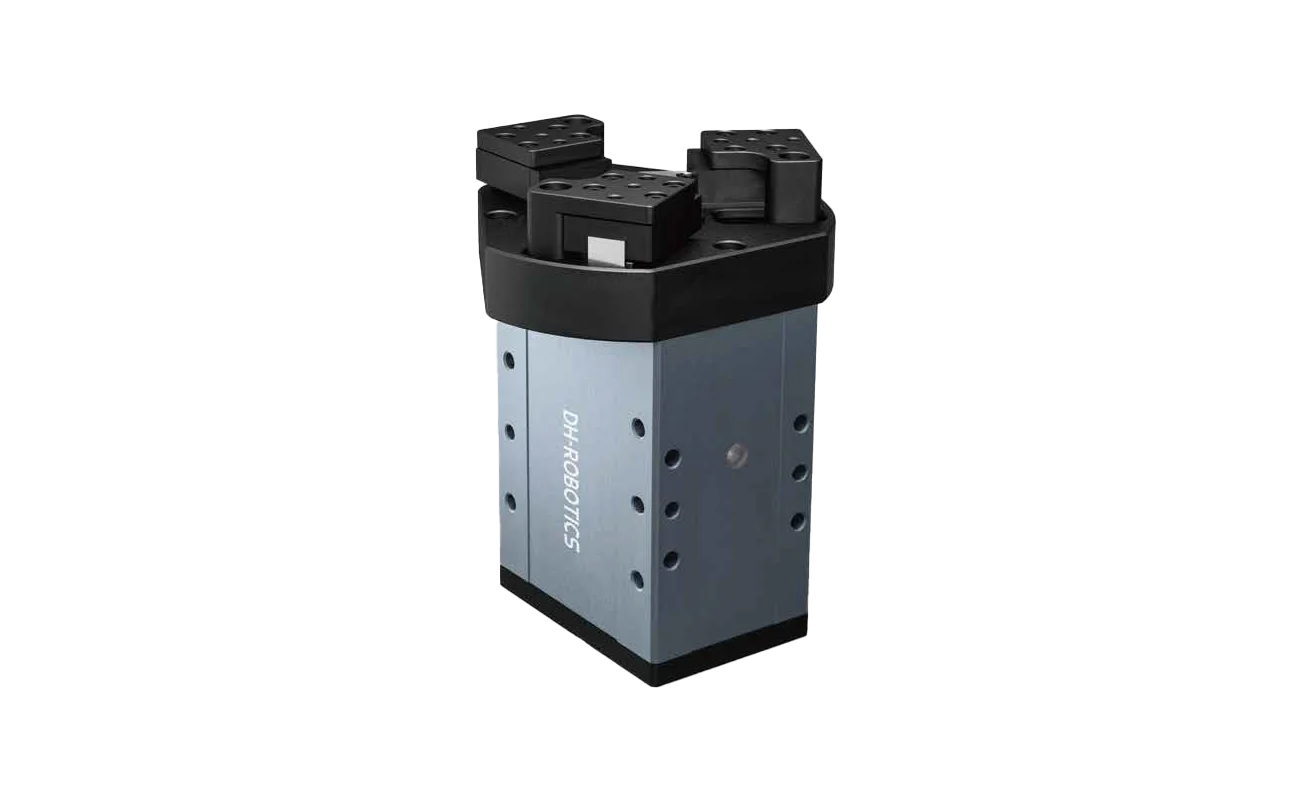

DH-Robotics Centric Electric Gripper
The CG series three-finger centric electric gripper, independently developed by DH-Robotics, is a high-performance solution for gripping cylindrical workpieces. The CG series offers multiple models designed for different applications, stroke lengths, and end-effectors, making it suitable for a wide range of industrial scenarios.
Product Features:
- High Performance
Achieves high-precision centering and gripping with a high-rigidity structural design, and delivers energy density exceeding that of comparable products. - Long Service Life
Capable of continuous and stable operation for over 10 million cycles without maintenance. - Overload Protection
Equipped with a high-performance servo motor that provides instantaneous overload protection to ensure reliability and safety during operation.
Product Specifications:
| Model | Gripping Force (per jaw)(N) | Workpiece Weight (kg) | Stroke (mm) | Opening / Closing Time (S) | IP Class |
|---|---|---|---|---|---|
| CGE-10-10 | 3~10 | 0.1 | 10 | 0.3 | — |
| CGE-80-10 | 20~80 | 1.5 | 10 | 0.5 | IP67 |
| CGI-100-170 | 30~100 | 1.5 | — | 1.35 | IP40 |
