Aurotek EtherCAT Slice I/O Modules

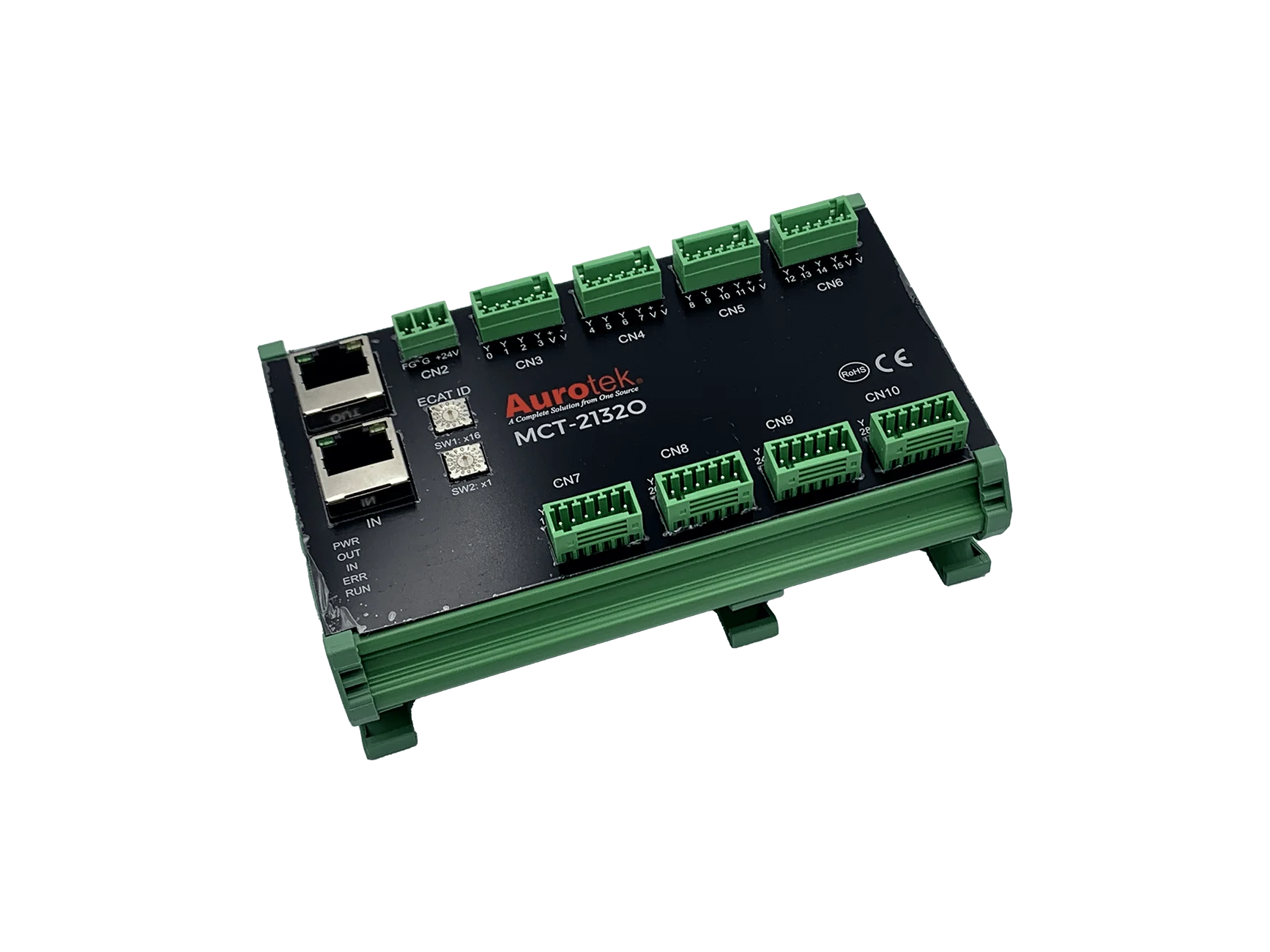

MCT-2132 Series is an EtherCAT slave 32-point input/output module, available in three models.

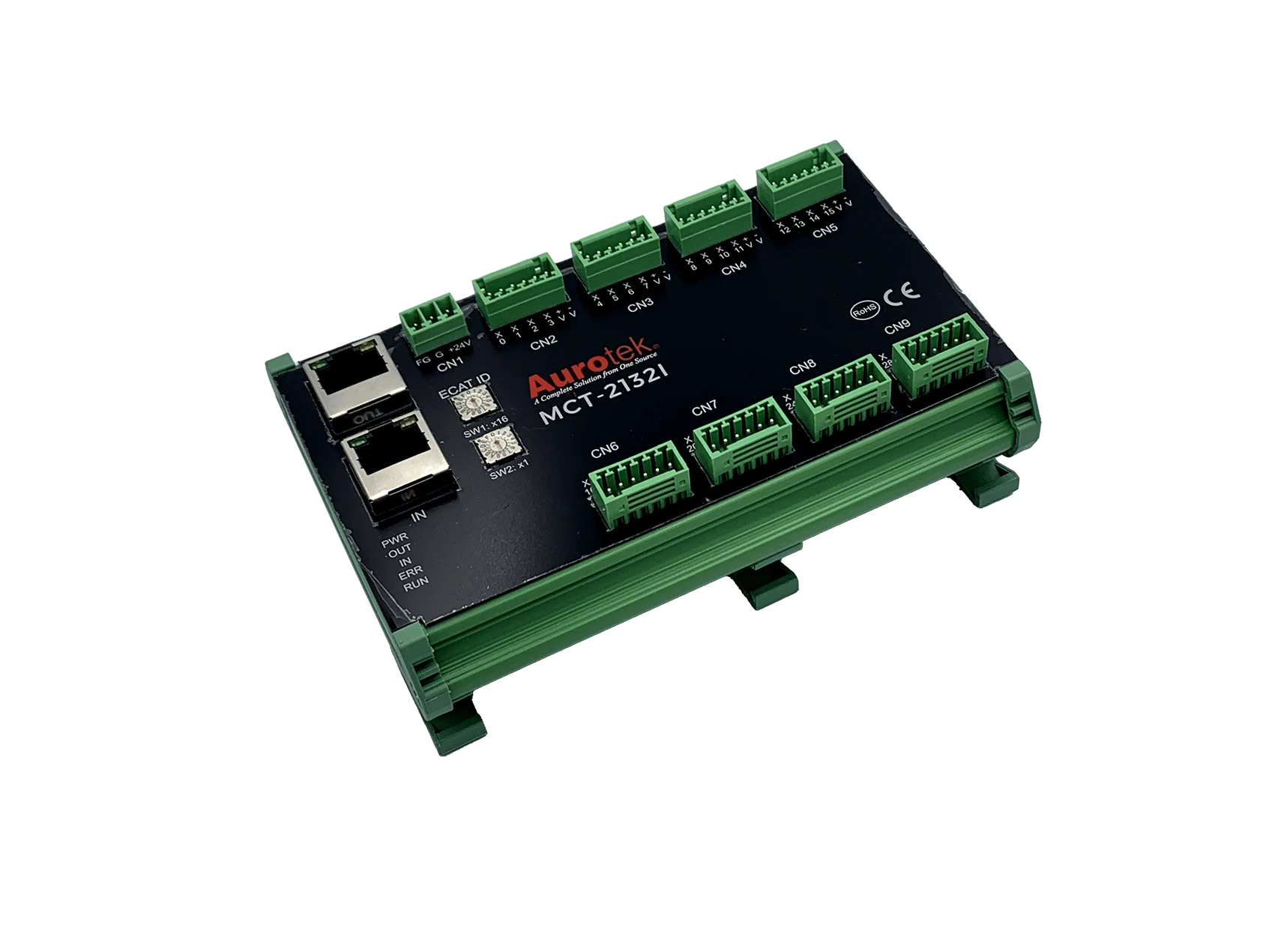

MCT-2132I is a 32-point input module, MCT-2132O is a 32-point output module, and MCT-2132B provides 16 input and 16 output points.

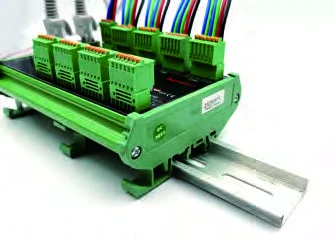

The compact design and DIN rail mounting clip allow for easy installation inside control cabinets.

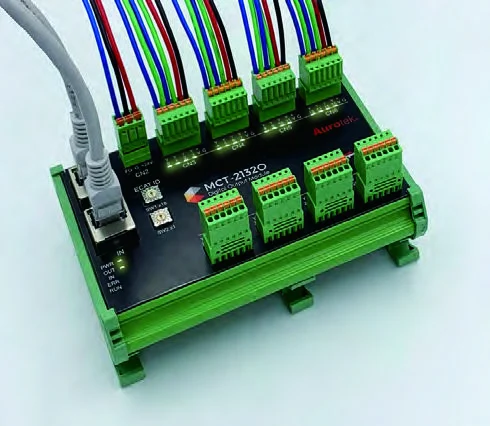

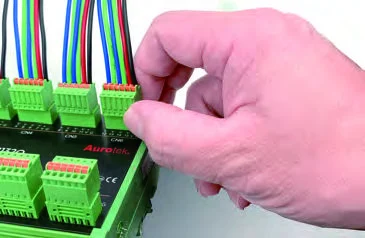

Equipped with European-style pluggable screwless terminal blocks and LED indicators, the module offers convenient wiring and setup.
Each of the 32 output points is protected by an isolated circuit and supports a maximum load current of 0.5A per channel.

Product Features:

• Screwless pluggable terminal design

• 8 sets of power terminals design to reduce daisy-chain wiring

• LED status indicators for channel monitoring

• Standard DIN-rail mounting for easy installation

Product Specifications

Model	MCT-2132 B	MCT-2132 I	MCT-2132 O
DI Channels	16	32	NA
DI Voltage	Voltage level: +18 to 36 Vdc	Voltage level: +18 to 36 Vdc	NA
DI Current	3~7mA per point	3~7mA per point	NA
Optical Isolation	v	v	NA
DO Channels	16	NA	32
DO Voltage	Voltage level:+18 to +36 Vdc	NA	Voltage level:+18 to +36 Vdc
DO Current (Max)	500 mA per point	NA	500 mA per point
Open Collector (NPN)	v	NA	v
Module Total Current (Max)	9.6A	9.6A	9.6A
Diagnostic LED	Power, EtherCAT status	Power, EtherCAT status	Power, EtherCAT status
Connectors	2 x RJ-45	2 x RJ-45	2 x RJ-45
Protocol	EtherCAT	EtherCAT	EtherCAT
Transmission Distance	Max. 100 m (100BASE-TX)	Max. 100 m (100BASE-TX)	Max. 100 m (100BASE-TX)
Cable Type	Ethernet/EtherCAT Cable (Min. CAT 5), Shielded	Ethernet/EtherCAT Cable (Min. CAT 5), Shielded	Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Output State Retention	Output States keep	NA	Output States keep
Input Voltage Range	24 Vdc ± 10 %	24 Vdc ± 10 %	24 Vdc ± 10 %
Power Consumption	2W	2W	2W
ESD (IEC 61000-4-2)	4 KV Contact for Each Channel	4 KV Contact for Each Channel	4 KV Contact for Each Channel
EFT (IEC 61000-4-4)	Signal: 1 KV Class A Power: 1 KV Class A	Signal: 1 KV Class A Power: 1 KV Class A	Signal: 1 KV Class A Power: 1 KV Class A
Surge (IEC 61000-4-5)	1 KV Class A	1 KV Class A	1 KV Class A
Mounting Method	DIN-Rail	DIN-Rail	DIN-Rail
Dimensions (L×W×H)	133 x 91 x 61 mm	133 x 91 x 61 mm	133 x 91 x 61 mm
Operating Temperature	0° C ~ 60° C	0° C ~ 60° C	0° C ~ 60° C
Storage Temperature	-20° C ~ 85° C	-20° C ~ 85° C	-20° C ~ 85° C
Humidity	10 ~ 90%, No Condensation	10 ~ 90%, No Condensation	10 ~ 90%, No Condensation
