Six-axes Intelligent Dispenser
Introduction

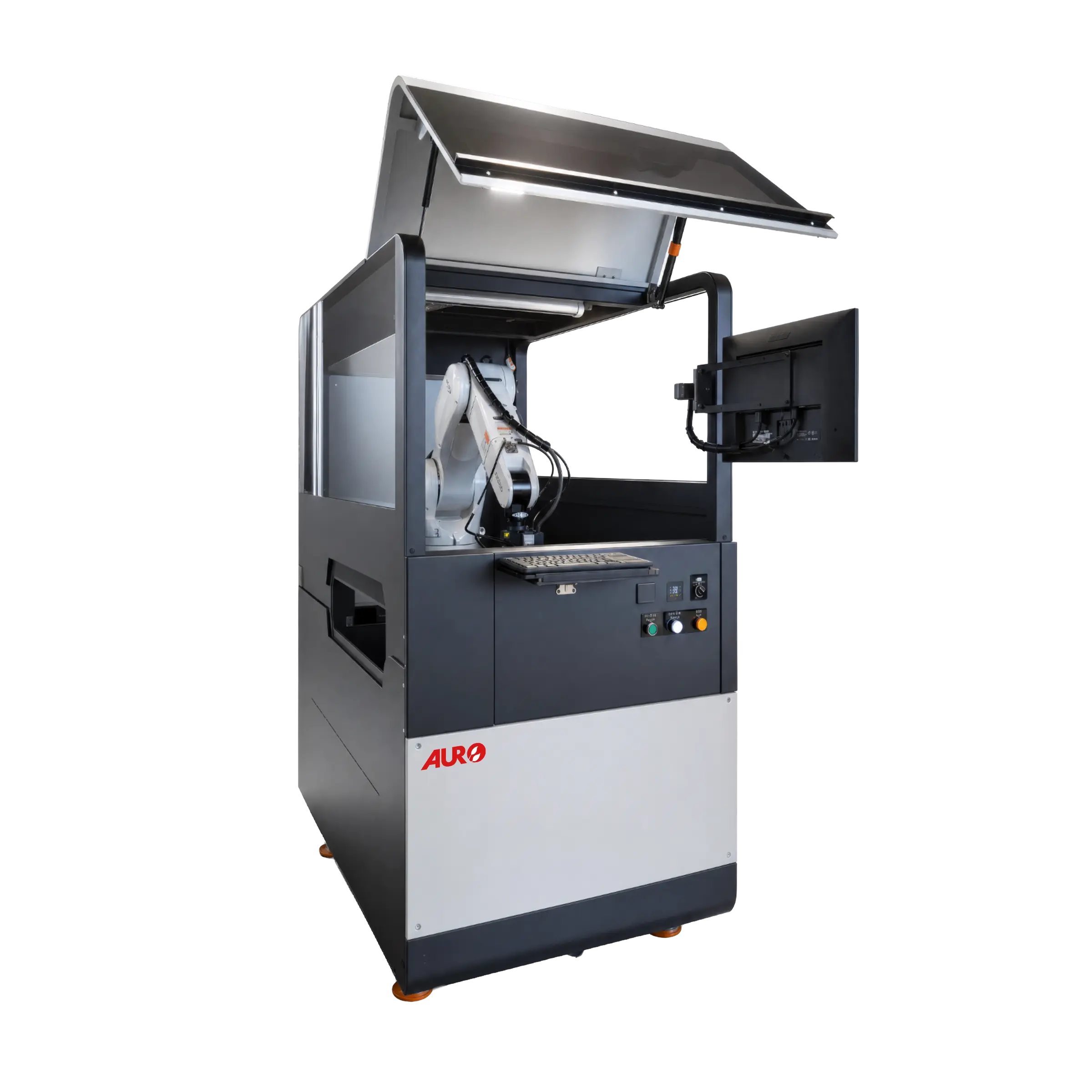

AuroJet 6｜Six-axes Intelligent Dispenser
Product Features:
- Min. fluid weight of jetting valve 0.01 mg
- Equipment with industrial robot which achieves high freedom of 3D spatial dispensing
- Achieve different dispensing, coating & jetting applications with corresponding valve modules
Product Specifications:
| Model | AuroJet 6 Six-axes Intelligent Dispenser |
|---|---|
| PCB Dimensions | 500 mm x 400 mm |
| Working Area | Vertical dispensing area as 500 mm x 396 mm (smaller depends on dispensing angle) |
| Dispensing Valve | Jetting valve / Auger valve / Hot melt jetting valve / Double-components adhesive module / Atomizing valve |
| PCB Loading Time | 3.0 sec |
| Positioning Accuracy | ± 0.02 mm |
| Repeat Accuracy | ± 0.05 mm |
| Min. Fluid weight | 0.01 mg |
| Air Source | 4.0～6.0 Kgf/cm² ( Max. 85 PSI ) |
| Power Supply | 3φ , 220VAC / 380VAC ; 50/60 Hz |
| Consumption Power | 3.5 KW ( Max. 5.0 KW ) Max. 7.0 KW; w/PCB bottom heater modules |
| Dimensions | W900mm x D1540mm x H1780mm + 265 mm signal tower |
| Weight | 550 Kg |
