Semi-Automatic PCB Separator
Introduction

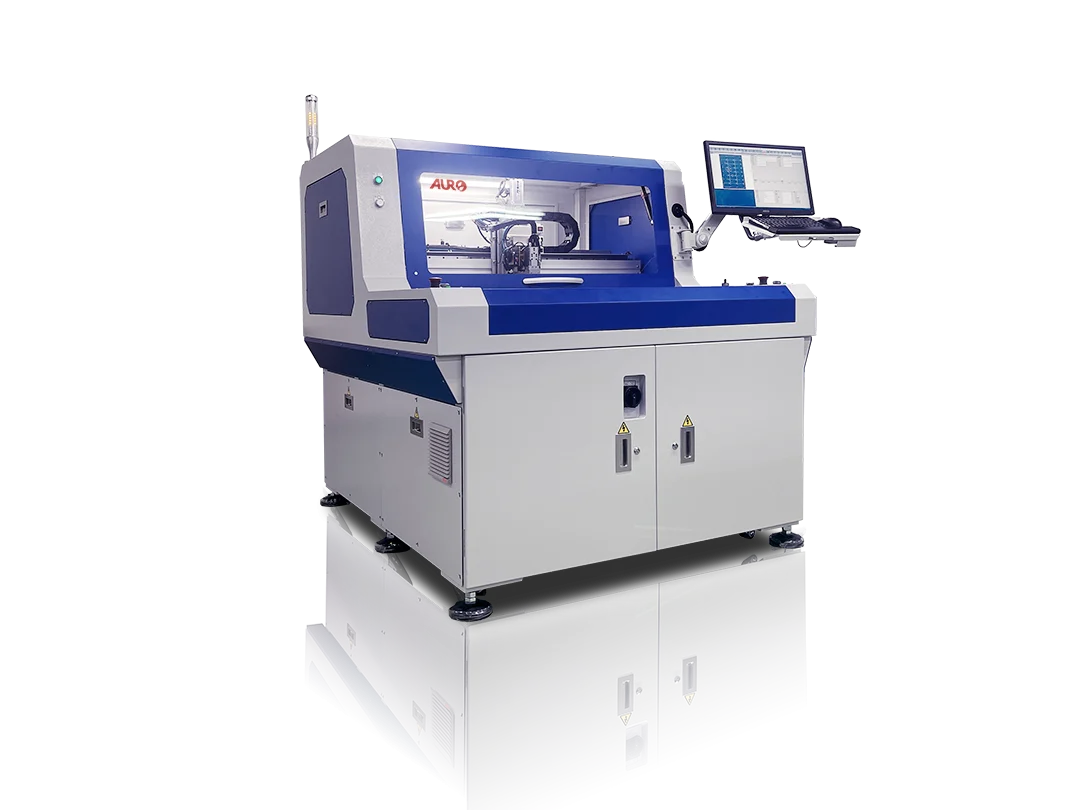

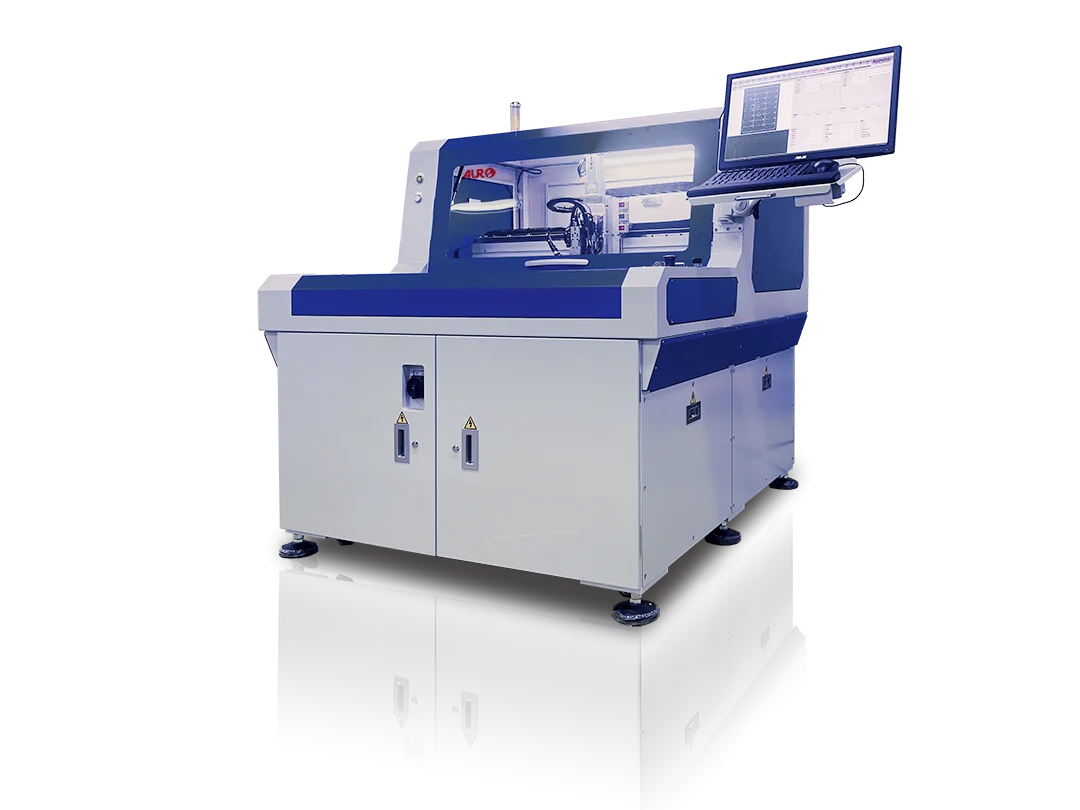

Semi-Automatic PCB Separator
Aurotek AUO Semi-Automatic PCB Separator delivers clean, precise, and efficient cutting with an intuitive user interface.
Product Features:
- Smart Monitoring with AI Predictive Maintenance reduces troubleshooting time by 15%.
- EtherCAT High-Speed Synchronization delivers precise communication and stable performance.
- Optimal Cutting Path Generation shortens programming time by 20%.
- Spindle-Mounted Dust Extraction Design reduces debris accumulation and minimizes internal contamination.
- 10% Equipment Footprint Reduction improves floor space utilization.
Product Specifications:
| Model | AUO 4000A |
|---|---|
| Working Area | X:450 mm Y:520 mm |
| Working Table | 2 |
| PCB Thickness | 0.8~3.0mm |
| PCB Component Height | Top : 15 mm; Bottom:35 mm |
| Motion Control | 5-axis Panasonic AC servo system |
| Moving Speed | Standard：X1, X2, YL, YR=1,000 mm/s; Z=750 mm/s Maximum：X1, X2, YL, YR=1,200 mm/s; Z=750 mm/s |
| Cutting Speed | 0~100 mm/s |
| Cutting Accuracy | ±50 μm |
| Positioning Repeatability | ±10 μm |
| Cutting Modes | Straight, L-shape, U-shape, Arc, Special Form |
| Standard Bits | Ø 1.0 mm, Ø 1.2 mm, Ø 1.6 mm, Ø 2.0 mm |
| Operating System | Windows 11 |
| Pneumatic Pressure | ≧0.65 Mpa (≧6.5 Bar) |
| Working Height | 810 mm ±20 mm |
| Dimensions (W*D*H) | 1415 x 1600 x1500 mm + 283 mm signal tower |
| Net Weight (Approx.) | 750 kg |
| Vacuum Cleaner | Following Type Dust Collector |
| Spindle | SycoTec High Speed Spindle |
| Standard Monitor | 22″ LCD monitor |
| Power Supply | 3 Phase AC220 V±5% 50 Hz/60 Hz, 4.0 kw |
