Desktop Semi-Automatic PCB Separator
Introduction

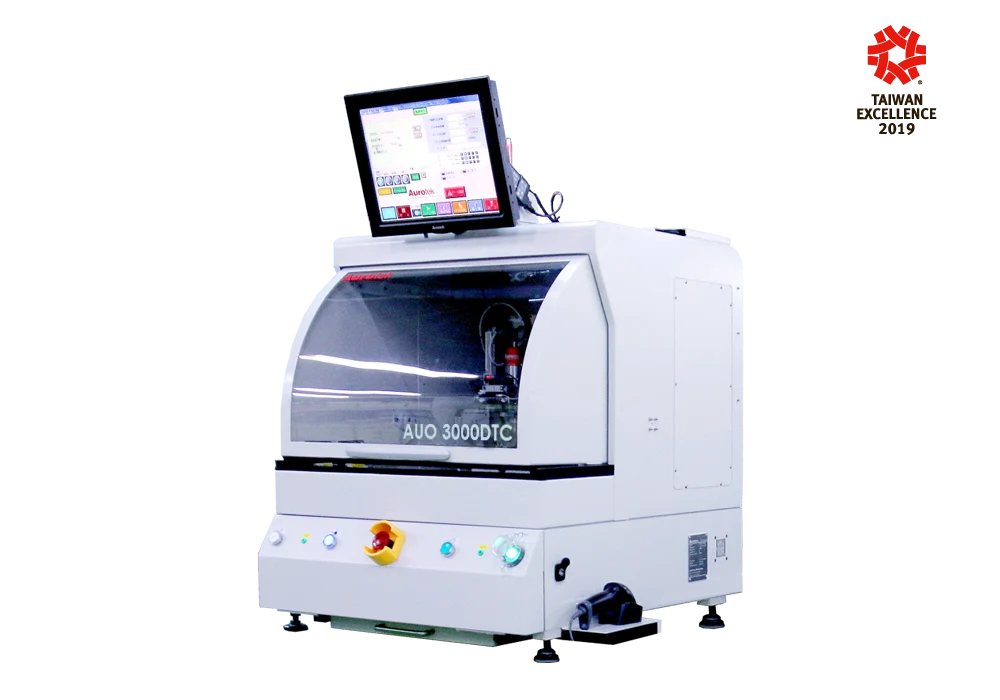

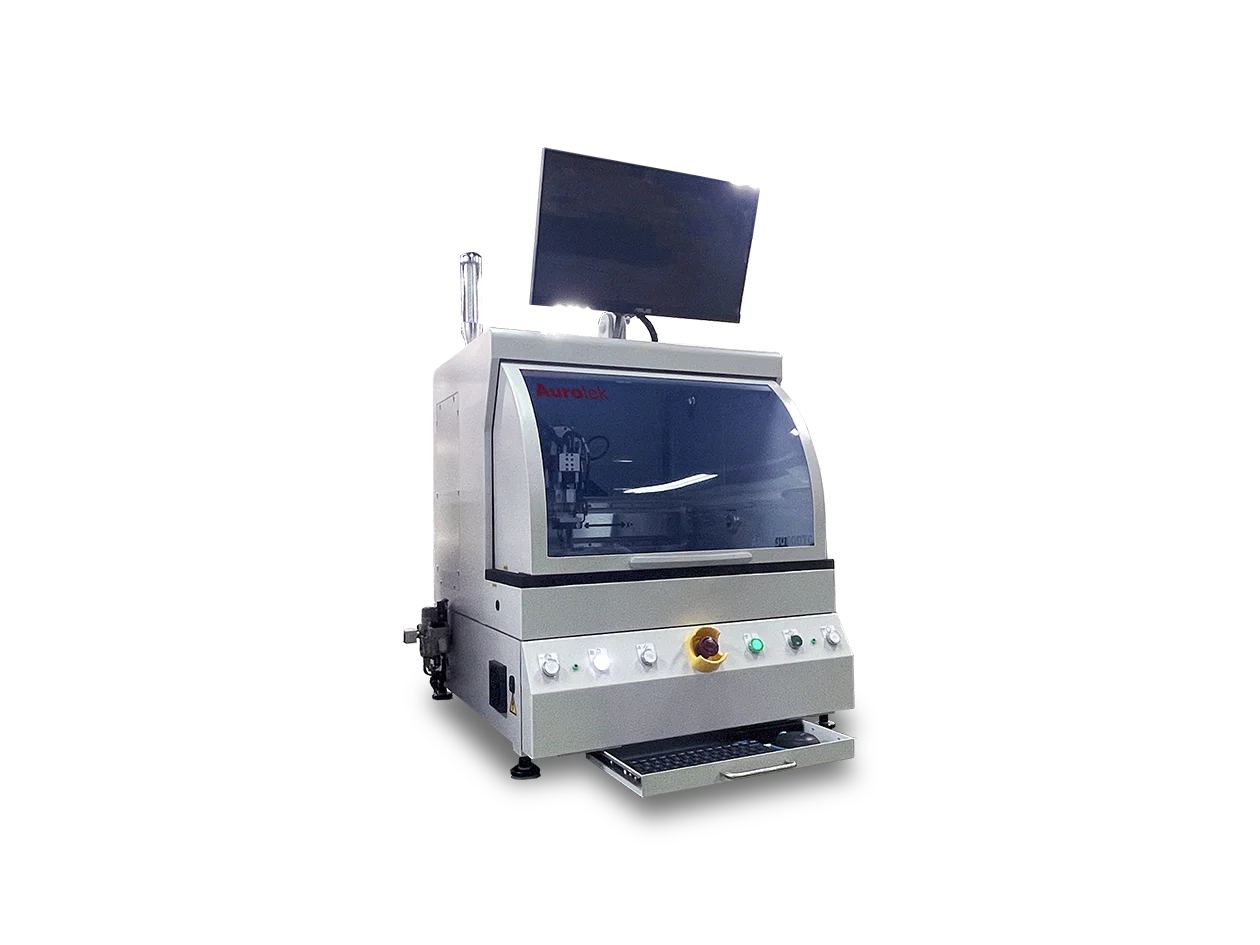

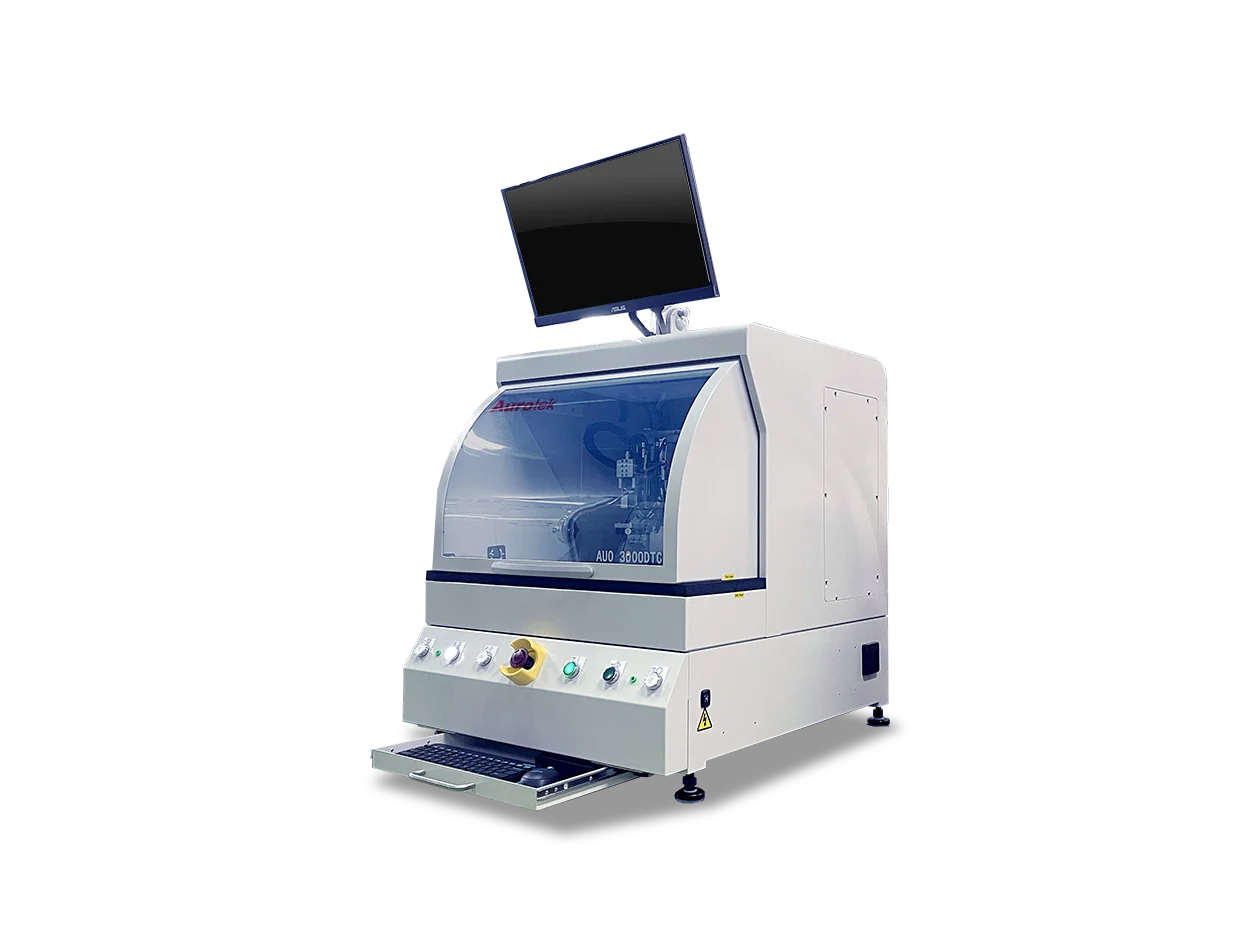

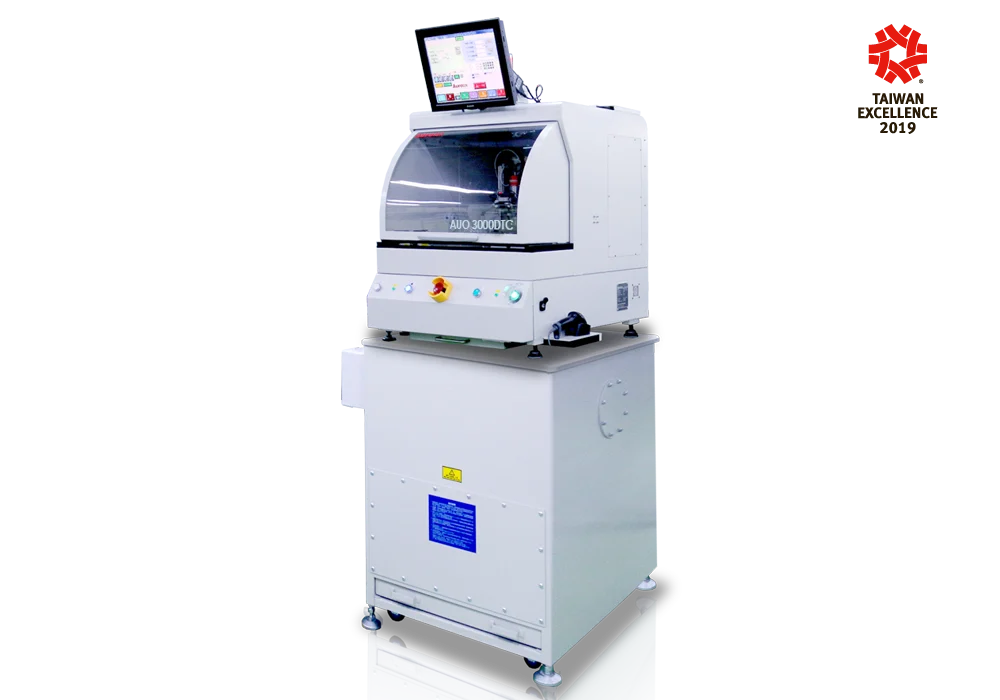

Desktop Semi-Automatic PCB Separator
Desktop Semi-Automatic PCB Separator is Aurotek’s most compact cutting machine, designed for SMT production lines with space constraints.
Its PC-based control system offers an intuitive and user-friendly interface, ensuring high precision, efficiency, and an optimized dust collection system.
The lightweight design saves space, while the single workstation is ideal for small-volume, high-mix production, making it a highly efficient and cost-effective solution with excellent usability and safety.
Product Features:
- Efficient
- Small industrial dust collector
- The minimized dust collection port, positioned close to the processing area, efficiently removes dust during the depaneling process.
- Accurate
- KURODA high precision ball screw
- Panasonic servo motor
- SycoTec spindle
- Advantech industrial computer
- Aurotek motion control card
- Aurotek Vision System
- Core Performance Features
- We gurantee: Cpk>=1.33
- Positioning Repeatability ±10 μm
- Cutting Accuracy ±50 μm
- Speedy
- High-speed axis modules reach up to (max.) 500mm/s
- Maximum cutting speed 100mm/s
- Customized fixture and tools. Production changeover can be done in just a few seconds
- Yield Increasing – Easy to use is a MUST. We design machines for:
- Manageability
- Usability
- Safety
- Traceability
Product Specifications:
| Model | AUO 3000DT / AUO 3000TC |
|---|---|
| Working Area | X: 330mm, Y: 250mm |
| Working Table | 1 |
| PCB Thickness | 0.8~3.0mm |
| PCB Component Height (Max.) | Upward: 15 mm / Downward: 45 mm |
| Motion Control | 3 Axes |
| Moving Speed | Maximum : X, Y, Z=500 mm/s |
| Cutting Speed | 0~100 mm/s |
| Cutting Accuracy | ±50 μm |
| Positioning Repeatability | ±10 μm |
| Cutting Modes | Linear, L-Curve, U-Curve, Arc, Circular |
| Standard Bits | Ø 1.0 mm, Ø 1.2 mm, Ø 1.6 mm, Ø 2.0 mm |
| Operating System | Windows 10 |
| Pneumatic Pressure | ≧0.65 Mpa (≧6.5 Bar) |
| Working Height | It’ll be decided by customers |
| Dimensions (W*D*H) | 680 x 815 x 845 mm + Signal Light 280 mm |
| Net Weight (Approx.) | 140 kg |
| Vacuum Cleaner | Bottom suction with air volume-type dust collection system |
| Standard Spindle | SycoTec High Speed Spindle |
| Standard Monitor | 22” Full HD Monitor |
| Power Supply | 1 Phase AC220 V±3% 50 Hz/60 Hz, 1.1 kW |
