Multi-Function PCB Separator
Introduction

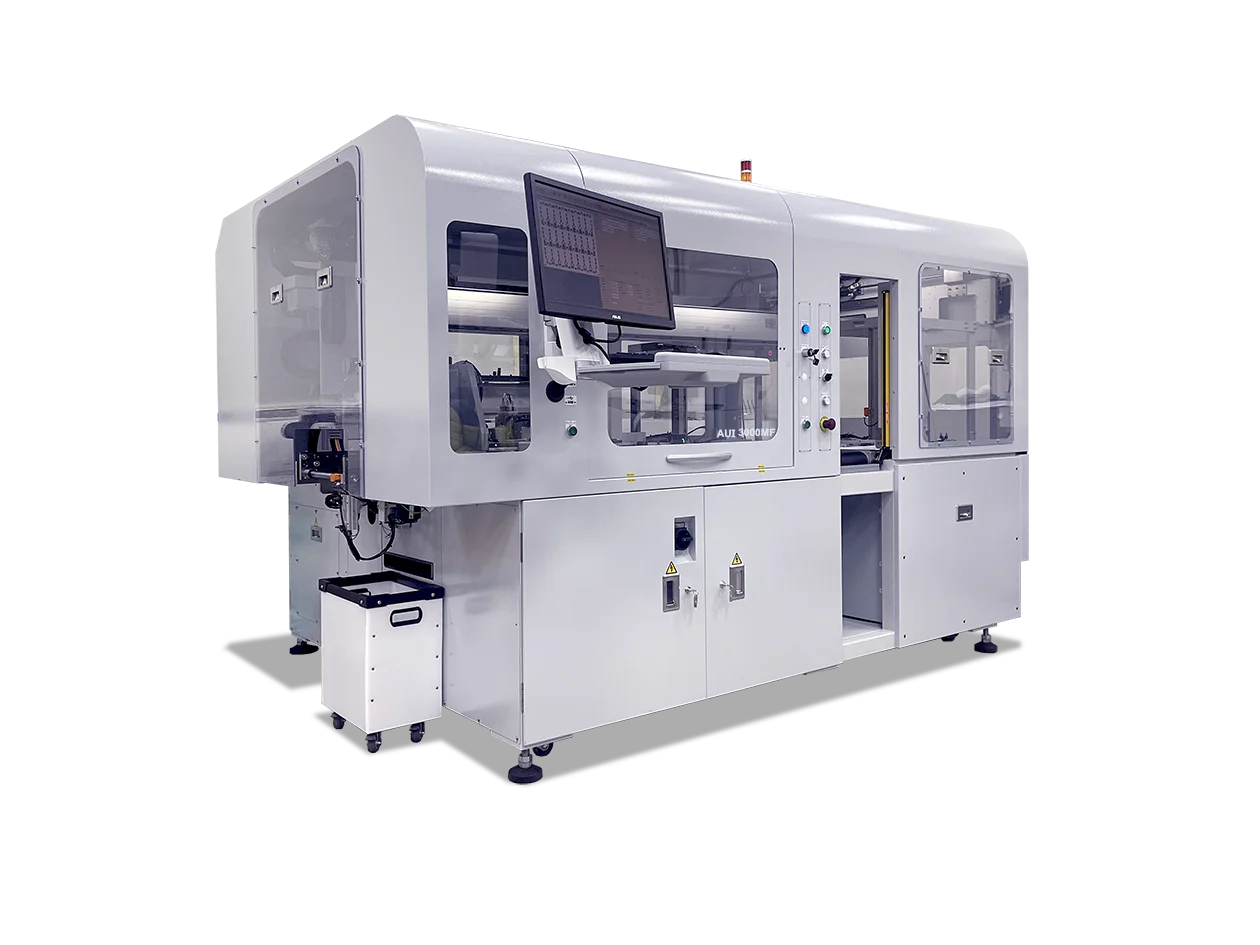

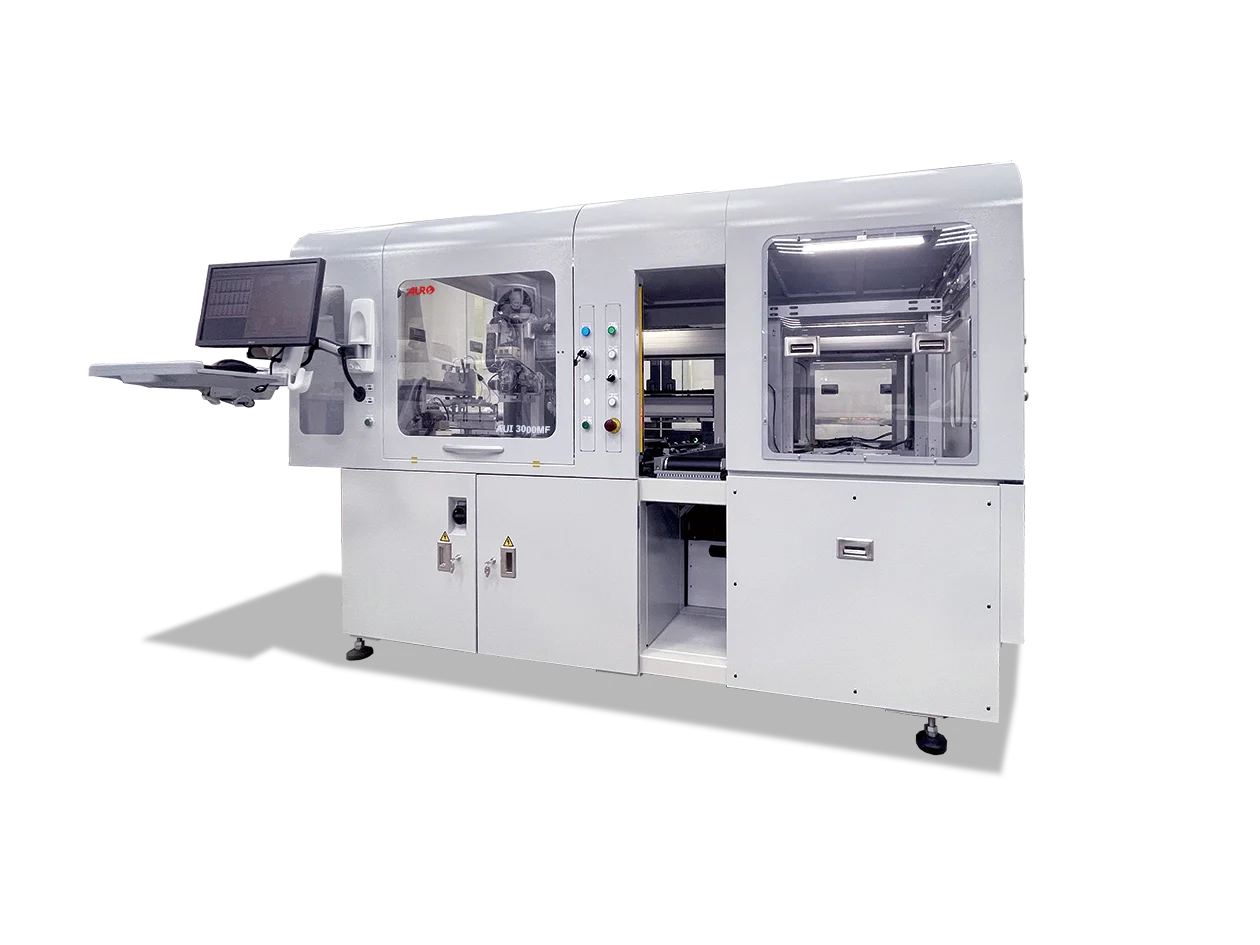

Multi-Function PCB Separator
Equipment Advantages:
- Independent inlet and out let working process that, increase efficiency
- Automatic upper lid: simple structure saves time for moving the lids
- Upper suction system: Collect the dust with high efficiency, while the lower horsepower, decreases power consumption
- Cut section inspection via vision system after routing, confirms the convex and concave value and, decreases the amount of waste PCB to save production cost
- PCB Scan function: direct edition on the PCB graph
- The automatic material outlet saves man power once the trays are full
- With width 22％ smaller that the combined units. it’s more space-efficient for the customers
- Transfer of the production date to MES, is enabled to meet Industry 4.0 design
Product Specifications:
| Model | AUI 3000MF |
|---|---|
| Working Area | X:330mm Y:300mm |
| PCB Thickness | 0.8~3.0mm |
| Motion Control | 16 Axis |
| Moving Speed | Standard： X, Y=1,000 mm/s; Z=750 mm/s; Moving axis X=700 mm/s; Max.： X, Y=1,200 mm/s; Z=750 mm/s; Moving axis X=1000 mm/s |
| Cutting Speed | 0~100 mm/s |
| Cutting Accuracy | ±50 μm |
| Positioning Repeatability | ±10 μm |
| Cutting Modes | Linear, L shape, U shape, Arc, Circle |
| Standard Bits | Ø 1.0 mm, Ø 1.2 mm, Ø 1.6 mm, Ø 2.0 mm |
| Operating System | Windows 10 |
| Pneumatic Pressure | ≧0.65 Mpa (≧6.5 Bar) |
| Working Height | 880 ~ 920 mm |
| Dimensions (W*D*H) | 1860 x 2740 x 1850 mm + Signal Light 564 mm |
| Machine net weight (approx.) | 1,690 kgs |
| Vacuum Cleaner | Top suction with air velocity-type dust collection system. |
| Standard Spindle | AP 008-ESD, 500W, (Max.) 80,000 rpm, Torque: 8.4 Ncm |
| Standard Monitor | 22″ LCD Monitor |
| Power Supply | 3 Phase AC220 V±3% 50/60Hz, 4.0 kw |
| Tray size | X:550 mm Y: 350 mm |
| Inspection accuracy after cut | ±100 μm |
| Stage moving speed | X、Y:700mm/s Z:500mm/s Lifting:250mm/s |
| Tray stack height | Max: 500 mm |
| Belt width of NG station | 200 mm |
